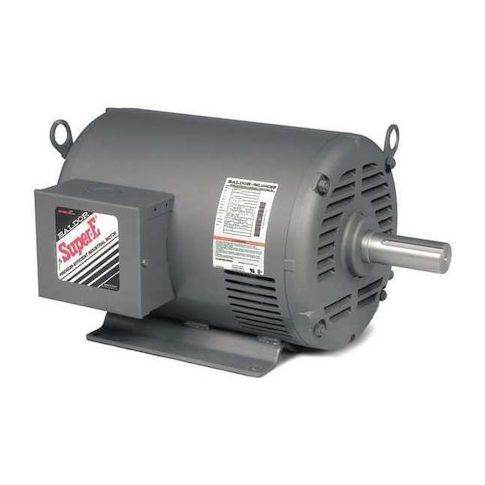

Three-Phase AC Induction Motor, 10 HP, 215T Frame, 230V AC, 460V AC Voltage, 1, 770 Nameplate RPM MPN:EHM3313T
Free Shipping
In Stock
This 10 HP three-phase AC induction motor is designed for heavy-duty applications in various industries. With a nameplate RPM of 1,770 and a high efficiency rating of 91.7%, it provides reliable performance and energy savings. The motor features a rigid base mounting type and open drip-proof enclosure, making it suitable for use in harsh environments. Its 1.15 service factor and Class F insulation ensure long motor life and durability. Ideal for applications such as pumps, fans, and compressors, this motor is CSA and RoHS compliant, meeting industry standards for safety and environmental responsibility.
Top product features:
- Three-phase AC induction motor design
- Open drip-proof motor enclosure design
- Ball motor bearings for reduced maintenance
Top product applications:
- Pumps
- Fans
- Conveyors
The BALDOR-RELIANCE - EHM3313T is a 3-Phase AC Induction Motor designed for various industrial applications. This motor converts electrical energy into mechanical energy through electromagnetic induction, making it an essential component in power transmission and pneumatics systems where rotational motion is required.
Key Features of the BALDOR-RELIANCE - EHM3313T:
- CC Number: The unique identifier assigned by the Electrical Apparatus Service Association (EASA) to classify and track this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: Designed for continuous operation under specified conditions.
- Frame: A 215T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: Draws a maximum current of 12.5/25/26.4 A when operating at full capacity, crucial for determining power supply requirements and ensuring safe operation.
- Inverter Rated: Compatible with a variable frequency drive that can adjust speed and torque within the specified ranges.
- Nominal Efficiency: Has an efficiency rating of 91.7% under standard testing conditions.
- Voltage Compatibility: Rated for operation within voltage levels ranging from 200V AC to 460V AC as per manufacturer's specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.75
- Package Width: 13.00
- Package Height: 10.25
- Package Weight: 127.00
