GeneralPurposeMotor, 2hp, 1800RPM, 145TC MPN:CL3516TM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7159306

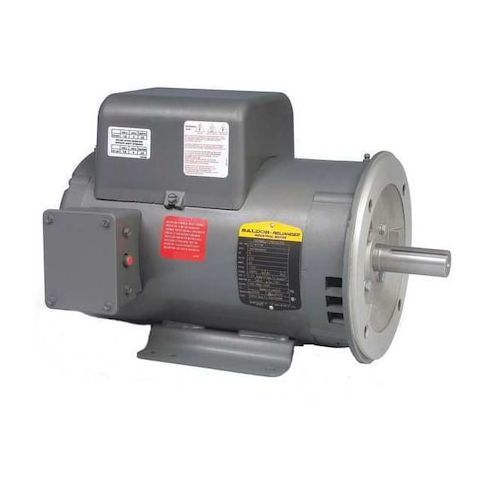

GeneralPurposeMotor, 2hp, 1800RPM, 145TC
The BALDOR-RELIANCE General Purpose Motor is a reliable and efficient solution for various industrial applications. This 2hp, 1800RPM motor is designed for single-phase use and features a capacitor-start/run design for optimal performance. Suitable for use at 208V, it can handle continuous duty cycles in environments up to 40°C. With a NEMA Design L rating and Totally Enclosed Fan Cooled design, this motor provides protection and efficiency. Ideal for use in manufacturing, material handling, and other industrial settings, it offers a cost-effective and reliable solution for motor needs. Its compact design and rigid base make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved cooling and reduced maintenance
- Single Phase motor design for efficient operation in a variety of applications
- Continuous Duty Cycle for uninterrupted operation in demanding environments
Top product applications:
- Pumps and water treatment systems
- Manufacturing and assembly lines
- Conveyor systems and material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 8.2 A, 145TC Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 11.00
- Package Height: 11.00
- Package Weight: 53.00
Product info last updated on February 1, 2026 11:54pm UTC
Category: Motors
