GeneralPurposeMotor, 1/2hp, 1800RPM, 56

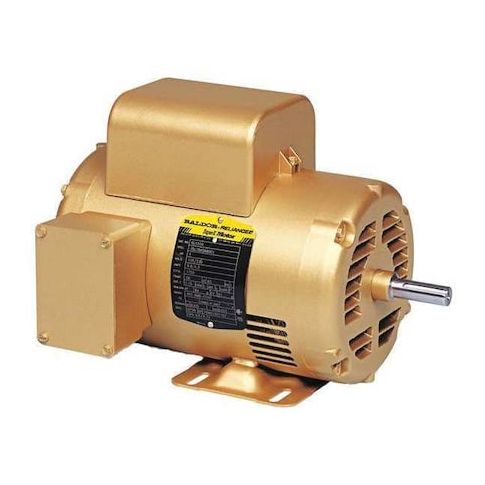

This 1/2 horsepower General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial machinery, pumps, and fans. Its single-phase, capacitor-start/run design provides efficient operation and reliability. With a nameplate RPM of 1,800 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in various environments. Its rugged, totally enclosed fan-cooled design ensures long-lasting performance and minimal maintenance. Perfect for continuous duty cycles, this motor is ideal for applications in manufacturing, food processing, and other industries where high reliability and efficiency are critical.
Top product features:
- Single phase operation
- Capacitor-start/run motor design for efficient starting and running
- Totally enclosed fan cooled design for improved heat dissipation and reduced maintenance
Top product applications:
- Pumps and water treatment systems
- Fans and blowers for HVAC and industrial applications
- Conveyor systems and material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.50
- Package Height: 11.00
- Package Weight: 30.75
