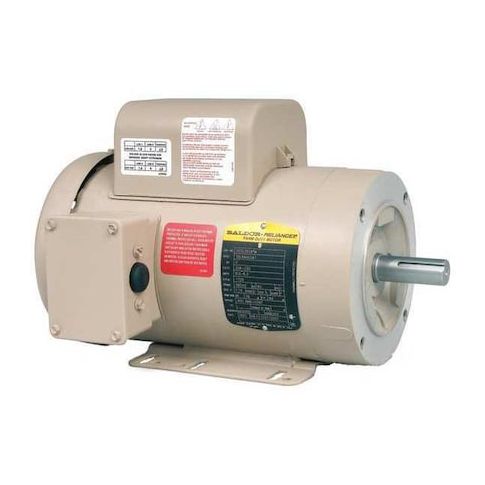

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 230V AC Voltage, 56CHZ Frame MPN:CFDL3516TM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7128226
Capacitor-Start/Run General Purpose Motor, 2 hp HP, 230V AC Voltage, 56CHZ Frame
The BALDOR-RELIANCE 2 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Suitable for continuous duty cycles, this motor operates at 1,800 RPM and is designed for single-phase use. Its compact 56CHZ frame and totally enclosed fan-cooled design ensure optimal performance in a range of environments. With a service factor of 1.15 and maximum ambient temperature of 40 degrees C, this motor is ideal for use in manufacturing, material handling, and other industries where high torque and reliability are essential. Its compact size and versatility make it a valuable addition to any operation.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and protection from environmental factors
- Continuous duty cycle for reliable operation in demanding applications
- Nameplate RPM of 1,800 RPM for high-speed performance and efficient operation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 7.9 A, 56CHZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 11.00
- Package Height: 11.50
- Package Weight: 53.00
Product info last updated on February 24, 2026 6:22am UTC
Category: Motors
