Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage MPN:EL11307
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7093530

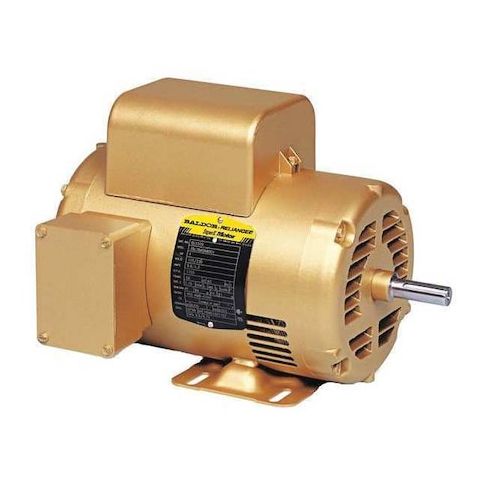

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage
The BALDOR-RELIANCE 3/4 hp Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a variety of applications, including industrial and commercial use. Its single-phase design and 115/230V AC voltage make it suitable for a range of settings, from manufacturing facilities to office spaces. The motor's capacitor-start/run design provides a high starting torque and smooth operation, while its totally enclosed fan-cooled design ensures reliable performance in demanding environments. Its compact size and rugged construction make it an ideal choice for applications requiring continuous duty cycles, including conveyor systems, pumps, and fans.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reduced maintenance
- Continuous duty cycle for high reliability and long motor life
- Nameplate RPM of 1,800 for efficient operation and high performance
Top product applications:
- Industrial conveyor systems
- Pumps and water treatment plants
- Fans and blowers in commercial buildings
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.1 A, 56 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.70
- Package Width: 11.50
- Package Height: 10.90
- Package Weight: 39.20
Product info last updated on March 28, 2026 10:49am UTC
Category: Motors
