Three-Phase AC Induction Motor, 1 HP, 56J Frame, 230V AC, 460V AC Voltage, 3, 450 Nameplate RPM MPN:JM3115
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7090128

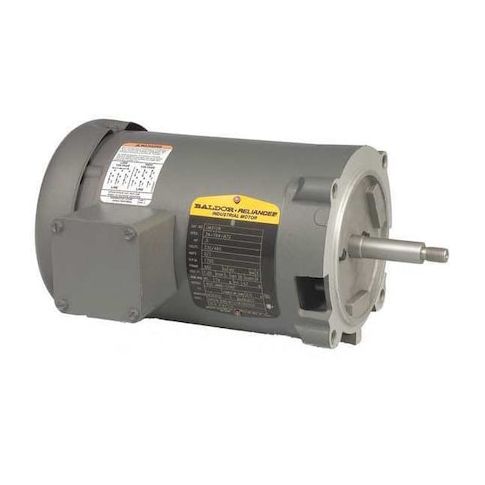

Three-Phase AC Induction Motor, 1 HP, 56J Frame, 230V AC, 460V AC Voltage, 3, 450 Nameplate RPM
This 1 HP, 3-phase AC induction motor from BALDOR-RELIANCE is designed for demanding applications, offering reliable performance and efficiency. With a nameplate RPM of 3,450 and a maximum ambient temperature of 40 degrees C, it can handle a wide range of industrial and commercial uses. Its steel frame and ball bearings ensure durability and long lifespan, while its open drip-proof enclosure design protects against dust and water. Suitable for use in facilities such as manufacturing plants, warehouses, and offices, this motor provides a cost-effective solution for powering machinery and equipment. Its high efficiency and reliability make it an ideal choice for applications requiring continuous operation.
Top product features:
- Three-phase AC induction motor design for efficient power conversion
- Ball bearings for smooth and quiet operation
- Steel frame construction for durability and long motor lifespan
Top product applications:
- Pumps and Compressors
- Fans and Blowers
- Conveyors and Material Handling Equipment
AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 3,450, Frame 56J, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.6/3.2/4.2 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.4, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, 3,001-3,600, CSA, RoHS Compliant, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.30
- Package Width: 11.70
- Package Height: 10.90
- Package Weight: 27.20
Product info last updated on February 22, 2026 4:34am UTC
Category: Motors
