Three-Phase AC Induction Motor, 5 HP, 184T Frame, 200V AC Voltage, 1, 750 Nameplate RPM MPN:EM3665T-8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7077379

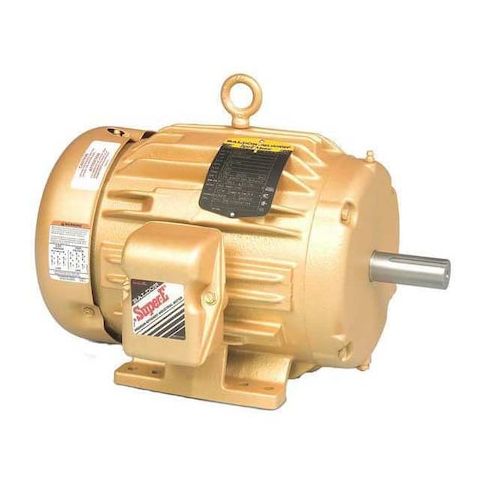

Three-Phase AC Induction Motor, 5 HP, 184T Frame, 200V AC Voltage, 1, 750 Nameplate RPM
This Baldor-Reliance 5 HP three-phase AC induction motor is a reliable and efficient solution for a variety of applications, including industrial processes, manufacturing, and commercial facilities. Its totally enclosed fan cooled design provides a safe and quiet operation, while its 1.15 service factor enables it to handle peak loads with ease. With a nameplate RPM of 1,750 and a maximum ambient temperature of 40°C, this motor is suitable for use in a range of environments. Its high efficiency of 89.5% and CSA EEV certification make it a cost-effective and compliant choice for industries that require a dependable AC induction motor.
Top product features:
- Three-Phase AC Induction Motor design provides efficient power transmission and utilization.
- Totally Enclosed Fan Cooled Motor Enclosure Design helps to protect the motor from environmental factors and reduces noise.
- Ball Motor Bearings ensure smooth and quiet operation by minimizing friction and vibration.
Top product applications:
- Industrial Pump Applications
- Water Treatment Plants
- Pulp and Paper Mills
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 5 HP, Nameplate RPM 1,750, Frame 184T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 15.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,701-1,800, CSA EEV, NEMA Premium, RoHS Compliant, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.00
- Package Width: 15.70
- Package Height: 14.50
- Package Weight: 108.00
Product info last updated on February 10, 2026 11:02am UTC
Category: Motors
