Three-Phase AC Induction Motor, 3 HP, 182T Frame, 575V AC Voltage, 1, 760 Nameplate RPM MPN:EM3611T-5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7074028

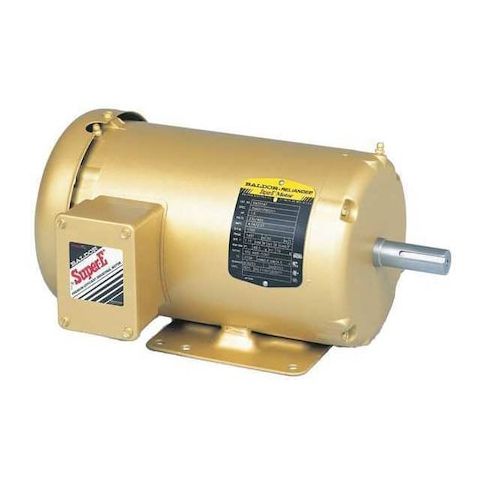

Three-Phase AC Induction Motor, 3 HP, 182T Frame, 575V AC Voltage, 1, 760 Nameplate RPM
This 3 HP, 575V AC three-phase induction motor is a reliable and efficient solution for various industrial applications. With a nameplate RPM of 1,760, it provides high performance and durability. Totally enclosed fan cooled design ensures long motor life and easy maintenance. Suitable for use in facilities with a maximum ambient temperature of 40 degrees C, this motor is perfect for applications such as conveyor systems, pumps, and fans. Its NEMA Premium and RoHS compliant design meets the highest industry standards for efficiency and environmental responsibility. Ideal for use in commercial and industrial settings, this motor offers a high service factor and long lifespan.
Top product features:
- Three-phase AC induction motor design
- Totally enclosed fan cooled motor enclosure
- Ball motor bearings for reduced friction and increased durability
Top product applications:
- Pump applications in the oil and gas industry
- Conveyor systems in manufacturing facilities
- Water treatment plants
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1,760, Frame 182T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,701-1,800, CSA EEV, NEMA Premium, RoHS Compliant, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.75
- Package Width: 12.25
- Package Height: 11.00
- Package Weight: 73.00
Product info last updated on February 2, 2026 10:01am UTC
Category: Motors
