Three-Phase AC Induction Motor, 10 HP, 215T Frame, 230V AC, 460V AC Voltage, 1, 770 Nameplate RPM MPN:EM3714T
Free Shipping
In Stock

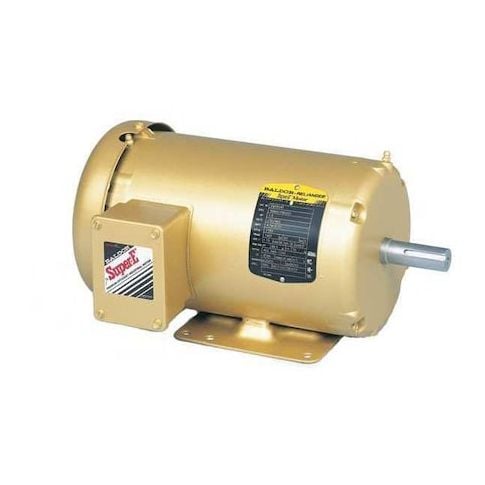

This 10 HP, 215T frame three-phase AC induction motor from BALDOR-RELIANCE is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1,770 and a nominal efficiency of 91.7%, this motor is ideal for use in industrial settings such as factories, power plants, and commercial facilities. The totally enclosed fan cooled design and steel frame ensure durability and long lifespan, while the ball bearings provide smooth and quiet operation. Suitable for use in applications such as pumps, fans, and compressors, this motor offers reliable performance and low maintenance costs.
Top product features:
- Three-phase AC induction motor design for efficient energy use
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps
- Fans
- Compressors
The BALDOR-RELIANCE - EM3714T is a 3-Phase AC Induction Motor designed for general purpose industrial applications. This motor operates by converting electrical energy into mechanical energy through electromagnetic induction, making it an essential component in power transmission and pneumatics systems where rotational motion is required.
Key Features of the BALDOR-RELIANCE - EM3714T 3-Phase AC Induction Motor:
- CC Number: The unique identifier assigned by EASA, classifying and tracking this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: Designed for continuous operation within specified conditions.
- Frame: Conforms to standard specifications for compatibility with a size of 215T.
- Full Load Amps: Rated to draw a maximum current of 12.5/25/27 A under full load conditions.
- Horsepower (HP): Has a rated power output of 10 HP under specified conditions.
- Inverter Rated: Compatible with variable frequency drives as per the product specifications
- Max. Ambient Temp.: Specified for operation up to an ambient temperature limit of 40 Degrees C
- Nominal Efficiency: Under standard testing conditions, has demonstrated an efficiency rate of approximately 91.7%
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 16.60
- Package Height: 17.20
- Package Weight: 160.00
