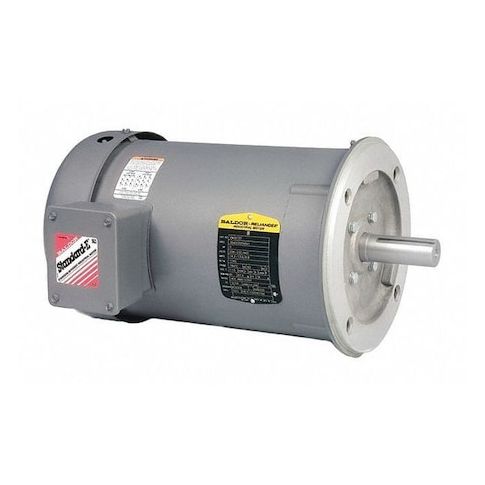

Three-Phase AC Induction Motor, 1/3 HP, 56C Frame, 230V AC, 460V AC Voltage, 1, 730 Nameplate RPM MPN:VM3534
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7063939
Three-Phase AC Induction Motor, 1/3 HP, 56C Frame, 230V AC, 460V AC Voltage, 1, 730 Nameplate RPM
The BALDOR-RELIANCE 1/3 HP Three-Phase AC Induction Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in industrial environments, this motor is designed for high-performance operation, with a nameplate RPM of 1,730 and a maximum ambient temperature of 40 degrees C. The motor's totally enclosed fan cooled design and steel frame ensure optimal heat dissipation and durability. Ideal for applications such as pumps, fans, and conveyor systems, this motor offers a high level of efficiency, with a nominal efficiency of 68 percent, making it an excellent choice for industries seeking to reduce energy costs and increase productivity.
Top product features:
- Three-Phase AC Induction Motor
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- HVAC applications
- Industrial machinery
- Pumps and fans
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,730, Frame 56C, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.70/1.3/1.4 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, 1,701-1,800, CSA, RoHS Compliant, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 11.00
- Package Height: 10.00
- Package Weight: 21.00
Product info last updated on March 14, 2026 9:35pm UTC
Category: Motors
