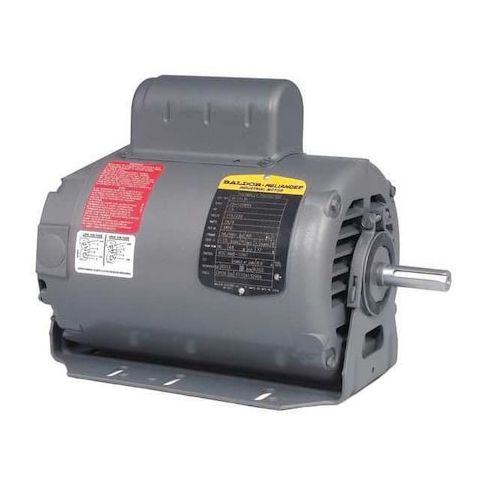

Capacitor-Start AC Induction Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56 Frame, 1, 725 Nameplate RPM MPN:RL1304A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7063537
Capacitor-Start AC Induction Motor, 1/2 HP, 115V AC, 230V AC Voltage, 56 Frame, 1, 725 Nameplate RPM
This 1/2 HP Capacitor-Start AC Induction Motor from BALDOR-RELIANCE is a reliable and efficient option for various applications. Suitable for direct drive blower motor applications, it offers a capacitor-start motor design with an open dripproof motor enclosure. The motor's 1725 nameplate RPM and 115/230V AC voltage make it versatile for use in a range of environments. Its 1.25 service factor and 40°C maximum ambient temperature ensure optimal performance. Ideal for use in commercial and industrial settings, this motor is a great choice for fans, blowers, and other equipment that require a reliable and efficient power source.
Top product features:
- Direct Drive Blower Motor design for efficient and precise operation
- Capacitor-Start Motor Design for reliable and high-torque performance
- Auto Thermal Protection for safe and prolonged motor operation
Top product applications:
- HVAC Systems
- Compressor Drives
- Fans and Blowers
Direct Drive Blower Motor, Capacitor-Start Motor Design, Open Dripproof Motor Enclosure Design, 1/2 HP, 1725 rpm Nameplate RPM, Voltage 115/230V AC, 4.2/4.8/8.4 A Full Load Amps, 60 Hz Hz, Single Phase, 56 Frame, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Ins. Class B, No. of Speeds 1, Motor Mounting Type Resilient Base, Motor Bearings Ball, Motor Thermal Protection Auto, Motor Shaft Rotation CW/CCW, Length Less Shaft 9 11/16 in, Overall Length 11 9/16 in, Shaft Dia. 5/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.60
- Package Width: 11.80
- Package Height: 11.00
- Package Weight: 27.15
Product info last updated on February 27, 2026 10:47am UTC
Category: Motors
