Three-Phase AC Induction Motor, 1 HP, 143TC Frame, 230V AC, 460V AC Voltage, 1, 170 Nameplate RPM MPN:CEM3556T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7057465

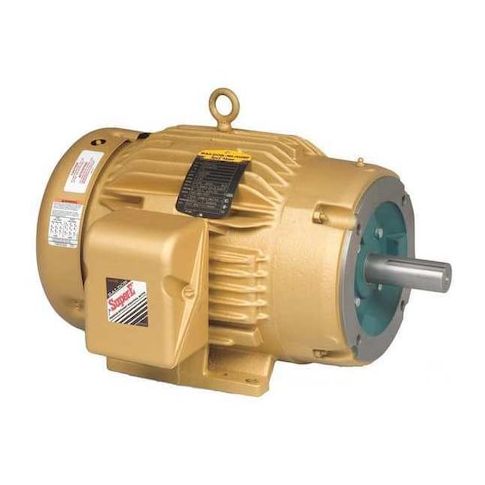

Three-Phase AC Induction Motor, 1 HP, 143TC Frame, 230V AC, 460V AC Voltage, 1, 170 Nameplate RPM
This 1 HP, 143TC frame, three-phase AC induction motor from Baldor-Reliance is designed for heavy-duty applications that require reliable and efficient performance. With a nameplate RPM of 1,170 and a service factor of 1.15, this motor is ideal for use in industrial settings, such as manufacturing, pumping, and material handling. The totally enclosed fan cooled design and steel frame ensure long-lasting operation in harsh environments, while the ball bearings provide smooth and quiet operation. Suitable for applications such as conveyor systems, pumps, and compressors, this motor offers excellent value and performance.
Top product features:
- Three-Phase AC Induction Motor design allows for efficient operation in three-phase electrical systems.
- Totally Enclosed Fan Cooled Motor Enclosure Design provides a safe and reliable operating environment in various temperatures.
- Ball Motor Bearings ensure smooth and quiet operation with reduced maintenance requirements.
Top product applications:
- Industrial Conveyors
- Pumps and Pumping Systems
- Power Generation and Distribution
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,170, Frame 143TC, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.8/3.6/3.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, 1,101-1,200, CSA EEV, NEMA Premium, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 13.80
- Package Height: 12.90
- Package Weight: 44.25
Product info last updated on January 20, 2026 12:29am UTC
Category: Motors
