Capacitor-Start General Purpose Motor, 1/4 hp HP, 115V AC, 230V AC Voltage, 56C Frame MPN:KL3403
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7056975

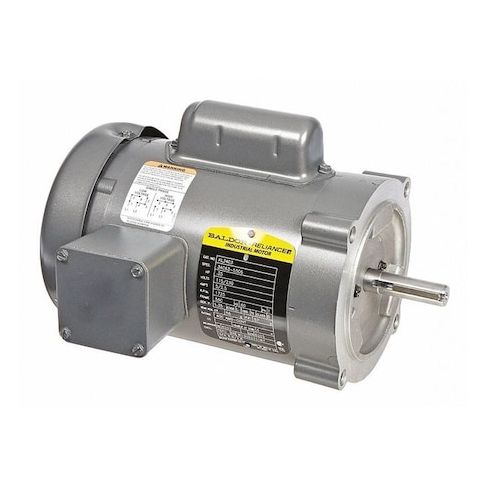

Capacitor-Start General Purpose Motor, 1/4 hp HP, 115V AC, 230V AC Voltage, 56C Frame
The BALDOR-RELIANCE Capacitor-Start General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in a range of environments, this motor is designed for continuous operation at 40°C ambient temperature. Its compact 56C frame and totally enclosed fan-cooled design make it ideal for use in tight spaces. With a high service factor of 1.35, this motor provides added reliability and flexibility. Its 1/4 hp output is suitable for applications such as fans, pumps, and conveyor systems, offering a cost-effective and energy-efficient solution for a variety of industries and settings.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor durability and reliability
- Single Phase, Motor Design Capacitor-Start/Run for efficient and consistent operation
- Continuous Duty Cycle for reliable performance in demanding applications
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.5 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 10.00
- Package Height: 10.00
- Package Weight: 20.00
Product info last updated on February 1, 2026 10:16pm UTC
Category: Motors
