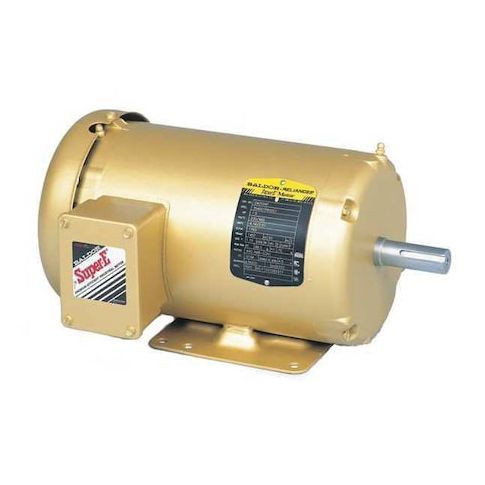

Three-Phase AC Induction Motor, 1/2 HP, 56 Frame, 230V AC, 460V AC Voltage, 1, 775 Nameplate RPM MPN:EM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7056397
Three-Phase AC Induction Motor, 1/2 HP, 56 Frame, 230V AC, 460V AC Voltage, 1, 775 Nameplate RPM
This 1/2 HP, 56 frame, three-phase AC induction motor from BALDOR-RELIANCE is designed for heavy-duty applications in various industries. Its totally enclosed fan-cooled motor enclosure ensures reliable performance in demanding environments, while its rigid base mounting type provides secure installation. With a nameplate RPM of 1,775 and a high efficiency rating of 78.2%, this motor is ideal for use in manufacturing, processing, and material handling applications. Its ball bearings and steel frame ensure durability and long lifespan, while its CSA and RoHS compliance make it a reliable choice for industries requiring environmentally friendly products.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CCW Motor Shaft Rotation
Top product applications:
- Pump and fan applications where high starting torque and reliability are required
- High efficiency and low noise applications such as in data centers or computer rooms
- Applications requiring high horsepower-to-size ratio such as in HVAC systems
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,775, Frame 56, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.90/1.8/1.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 78.2 Percent, 1,701-1,800, CSA, RoHS Compliant, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.60
- Package Height: 10.70
- Package Weight: 30.70
Product info last updated on February 2, 2026 8:54pm UTC
Category: Motors
