General Purpose Motor, 10 hp, 230V AC MPN:JML1512T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7056187

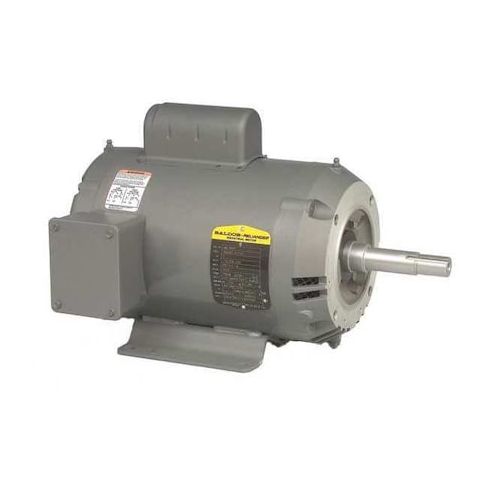

General Purpose Motor, 10 hp, 230V AC
This 10 hp, 230V AC general purpose motor from BALDOR-RELIANCE is designed for a variety of applications, including close-coupled pump systems. With a nameplate RPM of 1,725, it provides efficient and reliable operation. The motor's capacitor-start/run design and 1.15 service factor ensure optimal performance in continuous duty cycles. Suitable for use in 208V systems, it offers flexibility and versatility. Its NEMA Design L and Ins. Class F ratings meet or exceed industry standards. Ideal for use in industrial settings, this motor is a reliable choice for applications requiring high horsepower and efficiency.
Top product features:
- Close-Coupled design for efficient power transfer to the pump
- Capacitor-Start/Run motor design for improved starting and running efficiency
- NEMA Design L for high efficiency and low noise operation
Top product applications:
- Water Pumps for Residential and Commercial Use
- Industrial Process Pumps for Chemical and Food Processing Plants
- Centrifugal Pumps for Irrigation Systems and Agricultural Applications
Close-Coupled Pump Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 41/45 A, 215JM Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.25
- Package Width: 13.75
- Package Height: 12.75
- Package Weight: 150.00
Product info last updated on February 10, 2026 5:43pm UTC
Category: Motors
