Three-Phase AC Induction Motor, 1/2 HP, 56C Frame, 208V AC, 230V AC, 460V AC Voltage MPN:VBM3538
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7051040

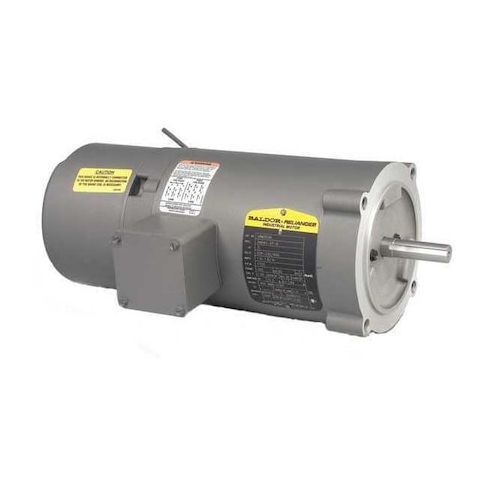

Three-Phase AC Induction Motor, 1/2 HP, 56C Frame, 208V AC, 230V AC, 460V AC Voltage
This 1/2 HP, 56C frame three-phase AC induction motor from BALDOR-RELIANCE is designed for a variety of applications including industrial, commercial, and residential use. Its totally enclosed non-ventilated motor enclosure design provides a safe and reliable operation in harsh environments. With a nameplate RPM of 1,725 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in applications such as pumps, fans, and compressors. Its high efficiency and robust design make it an ideal choice for demanding applications, while its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Totally Enclosed Non-Ventilated Motor Enclosure Design provides protection from environmental factors.
- Ball Motor Bearings ensure smooth and quiet operation.
- CCW Motor Shaft Rotation allows for correct installation and integration with existing equipment.
Top product applications:
- Industrial conveyor systems
- Pumps and compressors
- Fans and blowers
AC Induction Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,725, Frame 56C, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.90/1.8/1.9 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, 1,701-1,800, CSA, RoHS Compliant, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.60
- Package Width: 10.60
- Package Height: 11.20
- Package Weight: 30.90
