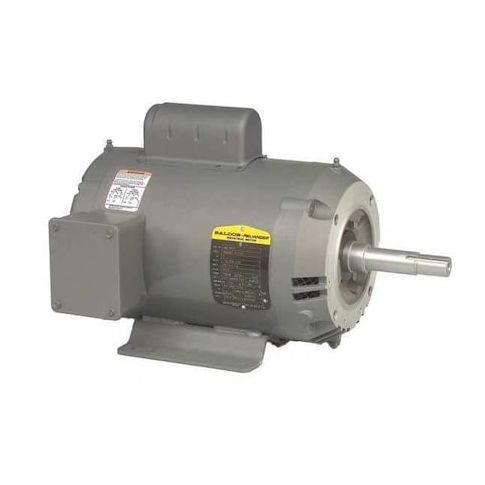

General Purpose Motor, 115V AC/230V AC MPN:JML3606T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7046210
General Purpose Motor, 115V AC/230V AC
The BALDOR-RELIANCE General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in both 115V AC and 230V AC systems, this single-phase motor is ideal for close-coupled pump applications. With a 3 HP rating and 1.15 service factor, it can handle continuous duty cycles in temperatures up to 40°C. The motor's totally enclosed fan-cooled design ensures quiet operation and long lifespan. Its compact size and rigid base mounting make it easy to integrate into a variety of systems, including HVAC, water treatment, and industrial processes.
Top product features:
- Totally Enclosed Fan-Cooled motor design provides a safe and reliable operating environment for the motor and surrounding equipment.
- Capacitor-start motor design allows for efficient and cost-effective operation in single-phase applications.
- Rigid base motor mounting enables secure and stable installation in a variety of horizontal applications.
Top product applications:
- Water Pumps
- Centrifugal Pumps
- Sewage Pumps
Close-Coupled Pump Motor, Single Phase, Motor Design Capacitor-Start, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 230V AC, Full Load Amps 14.5/15/29 A, 182JM Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.60
- Package Width: 16.00
- Package Height: 14.90
- Package Weight: 78.10
Product info last updated on February 5, 2026 8:53am UTC
Category: Motors
