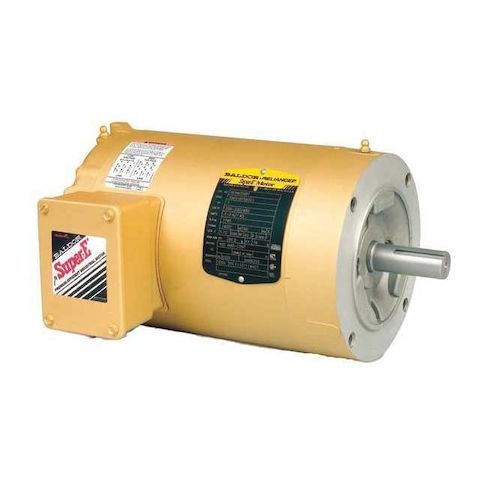

main product photo

Three-Phase AC Induction Motor, 1 HP, 143TC Frame, 230V AC, 460V AC Voltage, 1, 770 Nameplate RPM MPN:VENM3546T

Discount: See in Cart
Free Shipping
In Stock
Brand: BALDOR-RELIANCE
Part #: VENM3546T
UPC: 781568502877
SKU
510-G7036578
Regular Price $1,832.31 Special Price $1,308.79

BBB Accredited - ResellerRatings Elite Member - SBA Service-Disabled Veteran-Owned Certified

Add to Wish List Add to Compare
Three-Phase AC Induction Motor, 1 HP, 143TC Frame, 230V AC, 460V AC Voltage, 1, 770 Nameplate RPM

This 1 HP three-phase AC induction motor is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its 143TC frame and totally enclosed non-ventilated motor enclosure ensure efficient operation and protection from environmental factors. With a nameplate RPM of 1,770 and a service factor of 1.15, this motor provides reliable performance in high-demand situations. Its NEMA Premium rating and CSA EEV certification guarantee high efficiency and safety. Suitable for applications such as pumps, fans, and conveyor systems, this motor offers a cost-effective solution for businesses requiring reliable and efficient power.

Top product features:

  • Totally Enclosed Non-Ventilated Motor Enclosure Design
  • Ball Motor Bearings
  • CCW Motor Shaft Rotation

Top product applications:

  • Industrial Automation
  • Pumping and Blowing Systems
  • Material Handling Equipment
AC Induction Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1 HP, Nameplate RPM 1,770, Frame 143TC, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.67/3.3/3.34 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 1,701-1,800, CSA EEV, NEMA Premium, UR

Additional Information

  • Country of Origin: US
  • Drop Ship Item: No
  • Blind Ship Eligible: No
  • LTL Freight Required: No
  • Lead Time: Ships in 1 days
  • Minimum Order Quantity: 1
  • Unit of Measure: EA
  • Package Length: 16.50
  • Package Width: 11.60
  • Package Height: 11.10
  • Package Weight: 37.35
Product info last updated on March 14, 2026 10:05am UTC Category: Motors
