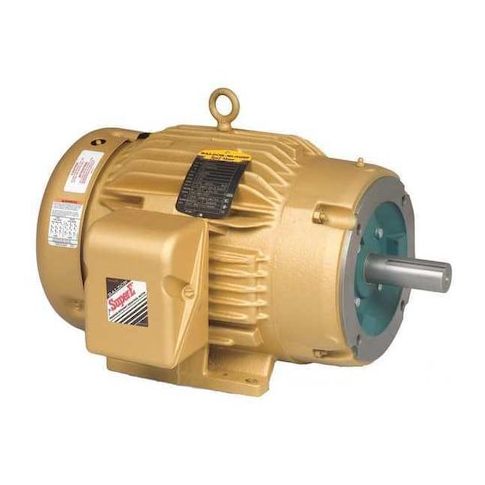

Three-Phase AC Induction Motor, 20 HP, 256TC Frame, 230V AC, 460V AC Voltage, 1, 770 Nameplate RPM MPN:CEM2334T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7036191
Three-Phase AC Induction Motor, 20 HP, 256TC Frame, 230V AC, 460V AC Voltage, 1, 770 Nameplate RPM
This 20 HP, 256TC frame three-phase AC induction motor from BALDOR-RELIANCE is designed for heavy-duty applications that require high efficiency and reliability. With a nameplate RPM of 1,770, this motor is suitable for use in industrial settings such as manufacturing, mining, and oil and gas operations. Its totally enclosed fan cooled motor enclosure design ensures optimal performance in harsh environments, while its ball bearings and cast iron frame provide long-lasting durability. The motor's high efficiency of 93% and CSA EEV certification make it an ideal choice for applications where energy conservation is a priority.
Top product features:
- Three-phase AC induction motor design
- Totally enclosed fan cooled motor enclosure for efficient cooling
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Pumps and compressors
- Fans and blowers
- Conveyors and material handling equipment
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256TC, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 52.0/48.0/24.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, 1,701-1,800, CSA EEV, NEMA Premium, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 26.50
- Package Width: 24.30
- Package Height: 17.30
- Package Weight: 298.00
Product info last updated on February 20, 2026 12:13pm UTC
Category: Motors
