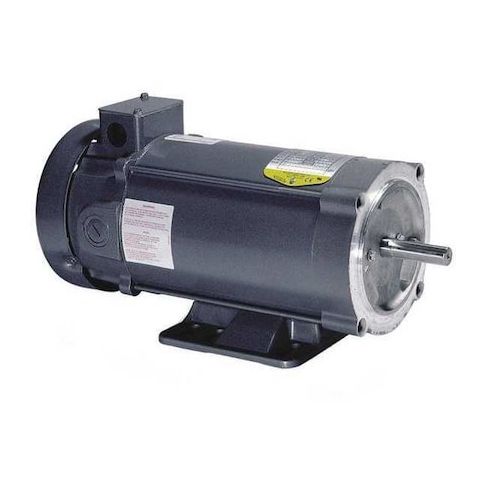

DC DC Motor, 3/4 HP, 56C Frame, 180V DC Voltage, 1, 750 Nameplate RPM 14 9/16 in Overall Length MPN:CDP3436
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7034137
DC DC Motor, 3/4 HP, 56C Frame, 180V DC Voltage, 1, 750 Nameplate RPM 14 9/16 in Overall Length
This high-performance DC motor from BALDOR-RELIANCE delivers reliable operation in demanding applications. With a 3/4 HP rating and 1,750 nameplate RPM, it is ideal for use in industrial automation, material handling, and robotics. The motor's totally enclosed fan-cooled design ensures efficient cooling and long lifespan, while its rigid base and horizontal mounting position provide stable operation. Its compact size and lightweight design make it easy to integrate into a wide range of systems. Suitable for continuous duty cycles, this motor is perfect for applications requiring high torque and speed, such as conveyor systems and pumps.
Top product features:
- Totally Enclosed Fan-Cooled design provides a cool operating environment for the motor.
- Sealed bearings ensure smooth and quiet operation.
- Keyed shaft design provides a secure connection to attached devices.
Top product applications:
- Industrial Automation Systems
- Automotive Testing Equipment
- Material Handling Systems
DC Motor, Motor Design DC, 3/4 HP, Nameplate RPM 1,750, Voltage 180V DC, 3.7 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Sealed, Shaft Length 1 7/8 in, Motor Shaft Design Keyed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 10.40
- Package Height: 10.90
- Package Weight: 37.90
Product info last updated on February 23, 2026 5:06pm UTC
Category: Motors
