Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage MPN:L3507
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5145603

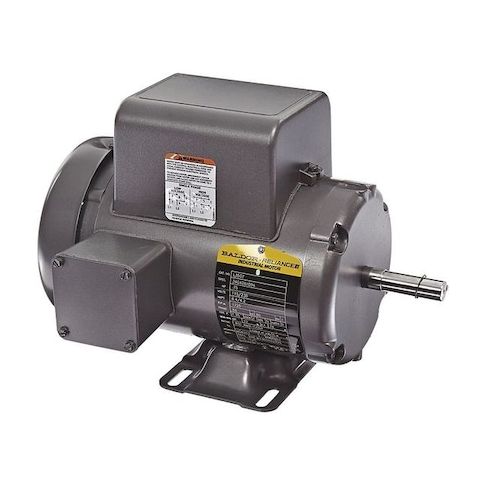

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56 Frame, 115/230V AC Voltage
The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a versatile and reliable solution for a wide range of applications. Suitable for use in 115/230V AC voltage environments, this motor is ideal for applications such as pumps, fans, and conveyor systems. Its 3/4 hp horsepower and 1,800 RPM nameplate speed make it a great choice for applications that require moderate power and speed. With a service factor of 1.25 and a totally enclosed fan-cooled design, this motor provides long-lasting performance and protection against overheating. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled design provides a safe and efficient cooling system for the motor.
- Single Phase Motor Design allows for easy installation and operation in a variety of applications.
- Continuous Duty Cycle capability enables the motor to operate for extended periods without overheating.
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.2 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 12.50
- Package Height: 9.50
- Package Weight: 33.00
Product info last updated on February 23, 2026 12:10am UTC
Category: Motors
