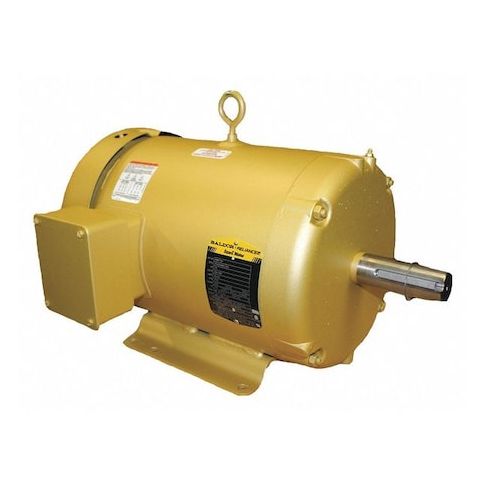

Three-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1, 770 Nameplate RPM MPN:EM3710T
Free Shipping
In Stock
This 7 1/2 HP three-phase general purpose motor is designed for demanding applications that require high efficiency and reliability. Built with a totally enclosed fan cooled motor enclosure, it operates at 1,770 nameplate RPM and is suitable for use in a variety of settings, including industrial, commercial, and manufacturing environments. Its rigid base motor mounting type and continuous duty cycle make it ideal for applications such as pumps, fans, and conveyor systems. With a nominal efficiency of 91.7 percent and a service factor of 1.15, this motor provides reliable performance in a range of temperatures and conditions.
Top product features:
- Three-phase AC voltage capability
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Heavy Industrial Pumping Systems
- Manufacturing Facilities with High-Volume Production Lines
- Large Commercial Laundry Facilities
The BALDOR-RELIANCE - EM3710T is a 3-phase AC General Purpose Motor, widely used in industrial and commercial settings for power transmission and pneumatics applications. This motor converts electrical energy into mechanical energy to operate various types of machinery across different sectors, from manufacturing lines to HVAC systems.
Key Features of the BALDOR-RELIANCE - EM3710T:
- CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for a continuous duty cycle, which may be suitable for certain industrial applications.
- Frame: Its 213T frame conforms to standard specifications for compatibility and interchangeability.
- Inverter Rated: Yes – it's compatible with variable frequency drives that could offer control over speed and torque.
- NEMA Premium(R) Rated: Recognized as compliant with specific environmental and energy efficiency standards. It might be considered an eco-conscious option by some industry professionals.
- Motor Service Factor: The service factor is 1.15, indicating potential capacity to handle temporary overloads beyond its rated power under specified conditions.
- Voltage Compatibility: Is rated for operation within the specified voltage ranges (200-230/440V AC, 208-220/440V AC, 208-230/460V AC to 230/460V AC). Performance may vary based on actual operating conditions."
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.25
- Package Width: 13.00
- Package Height: 12.50
- Package Weight: 125.00
