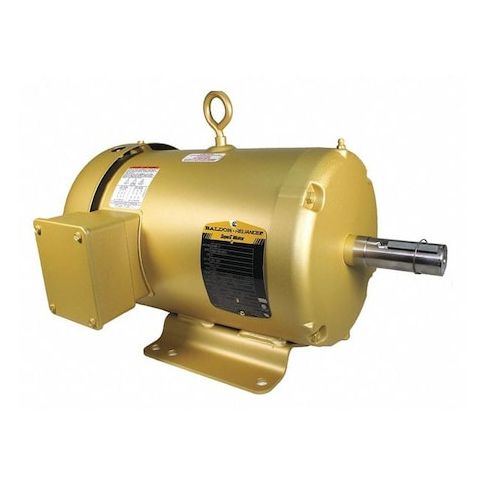

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:EM3611T
Free Shipping
In Stock
This 3 HP, 182T frame three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of industrial applications. Suitable for use in environments with ambient temperatures up to 40 degrees C, this motor features a totally enclosed fan cooled design, rigid base mounting, and ball bearings for smooth operation. With a high efficiency rating of 89.5%, it is ideal for applications requiring continuous duty. Its CSA and UR certifications ensure compliance with industry standards. Use it in manufacturing, material handling, and other industrial processes where reliable performance is critical.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial Automation
- Pumping Systems
- Conveyor Systems
The BALDOR-RELIANCE - EM3611T is a 3-phase AC General Purpose Motor, designed for industrial and commercial use. This motor converts electrical energy into mechanical energy to power various types of machinery. It's versatile enough to be used across different sectors, from manufacturing lines to HVAC systems.
Key Features of the BALDOR-RELIANCE - EM3611T General Purpose Motor:
- CC Number: The unique identifier assigned by EASA classifies and tracks this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: This motor is designed for continuous operation within its specified ratings under normal conditions.
- Frame: The 182T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: At full load, the motor is rated to draw a maximum current of 8.4/4.2 A
- it's important to match these specifications with your power supply requirements.
- NEMA Premium(R) Rated: This certification acknowledges that the motor meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals.
- Inverter Rated: The product is compatible with variable frequency drives for potential control over speed and torque as per application needs.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.10
- Package Width: 13.90
- Package Height: 12.20
- Package Weight: 72.10
