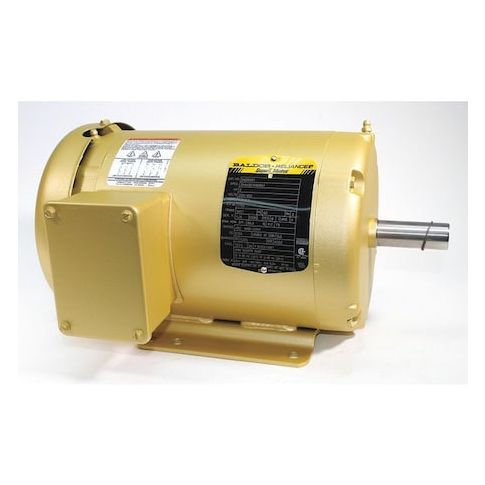

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM MPN:EM3558T
Free Shipping
In Stock
This 2 HP three-phase general purpose motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial machinery, HVAC systems, and pumps. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its rigid base mounting type ensures stable performance. With a nameplate RPM of 1755, this motor delivers efficient and consistent power output. Its high service factor and ball bearings enable long-term durability and reduced maintenance, making it an ideal choice for continuous duty applications. Its compact size and moderate weight also make it easy to integrate into various industrial settings.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump applications
- Material handling equipment
- Industrial manufacturing machinery
The BALDOR-RELIANCE - EM3558T is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy for use in various industrial and commercial applications such as power transmission and pneumatics. It's versatile enough to be used across different sectors, from manufacturing lines to HVAC systems.
Key Features of the BALDOR-RELIANCE - EM3558T General Purpose Motor:
- CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking based on design, specifications, and performance characteristics.
- Duty Cycle: The term "continuous duty cycle" refers to the product's ability to operate continuously under specific conditions, not a guarantee of operational efficiency or endurance.
- Frame: The 145T frame size conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: Draws a maximum current of 5.8/2.9 A when operating at full capacity which determines power supply requirements.
- NEMA Premium(R) Rated: Acknowledged for meeting certain environmental and energy efficiency standards making it an eco-friendly choice
- Inverter Rated: Rated for use with a variable frequency drive which can allow for control over speed and torque
- Motor Bearings: Ball bearings are incorporated into the design with the intent of reducing friction between moving parts, potentially facilitating smoother operation under specified load conditions
- Nominal Efficiency: Standard measure used as an indication of potential conversion rate from electrical power into mechanical power under normal operating conditions
- rated at 86.5%.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.40
- Package Width: 11.70
- Package Height: 8.20
- Package Weight: 45.65
