Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame MPN:L3501
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5145174
Capacitor-Start/Run General Purpose Motor, 1/3 hp HP, 115/230V AC Voltage, 56 Frame

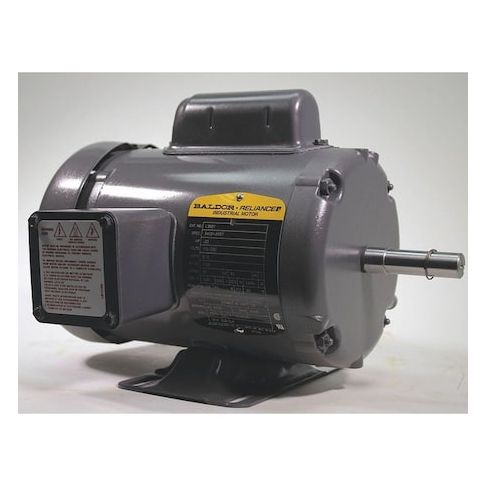

The BALDOR-RELIANCE Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in various industries, this motor can be utilized in environments with temperatures up to 40°C and is designed for continuous duty cycles. Its compact design and totally enclosed fan-cooled enclosure make it ideal for applications where space is limited. With its 1/3 hp horsepower and 1,800 RPM nameplate speed, this motor is perfect for applications such as pumps, fans, and conveyors, offering a cost-effective and reliable solution for your business needs.
Top product features:
- Capacitor-Start/Run design for efficient motor operation
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Single Phase motor design for compatibility with various power sources
Top product applications:
- Pump systems for residential and commercial use
- Conveyors and other material handling equipment
- Fans and blowers for industrial and commercial ventilation systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 12.25
- Package Height: 9.50
- Package Weight: 22.00
Product info last updated on March 4, 2026 4:57pm UTC
Category: Motors
