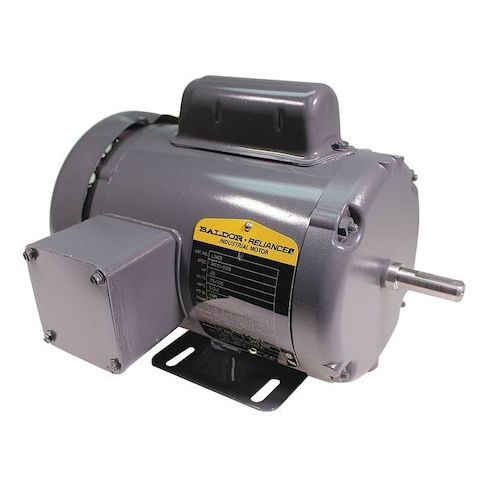

Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 48 Frame MPN:L3403
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5145165
Capacitor-Start/Run General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 48 Frame
This 1/4 hp Capacitor-Start/Run General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, this motor can operate continuously at temperatures up to 40°C and is designed for totally enclosed fan-cooled applications. Its compact size and durable construction make it an ideal choice for use in industrial settings, such as conveyor systems, pumps, and fans. With its high service factor and NEMA Design N certification, this motor provides reliable performance and long lifespan, making it a great option for applications where downtime is costly.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Single Phase motor design for efficient operation in standard household outlets
- Continuous Duty Cycle for uninterrupted operation in demanding applications
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 2.5 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 12.50
- Package Height: 9.50
- Package Weight: 20.00
Product info last updated on February 25, 2026 7:55am UTC
Category: Motors
