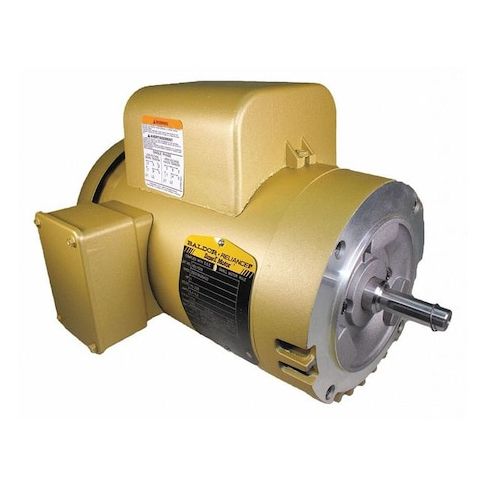

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:VEL11319
Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56C Frame
The BALDOR-RELIANCE Capacitor-Start General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, this motor delivers 1.5 horsepower at 1,725 RPM, making it ideal for commercial and industrial settings. With a compact 56C frame and open drip-proof enclosure, it provides reliable performance in a range of environments. The motor's continuous duty cycle and 1.15 service factor ensure long-term reliability. Its use in applications such as pumps, fans, and conveyor systems can help increase productivity and reduce maintenance costs. Its compact size also makes it suitable for space-constrained areas.
Top product features:
- Capacitor-start design for increased efficiency and reliability
- Single-phase motor operation for simple installation and control
- Open drip-proof motor enclosure design for protection against dust and water
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.4/6.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.10
- Package Width: 13.80
- Package Height: 12.90
- Package Weight: 57.70
