Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:VEL11313
Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/230V AC Voltage, 56C Frame

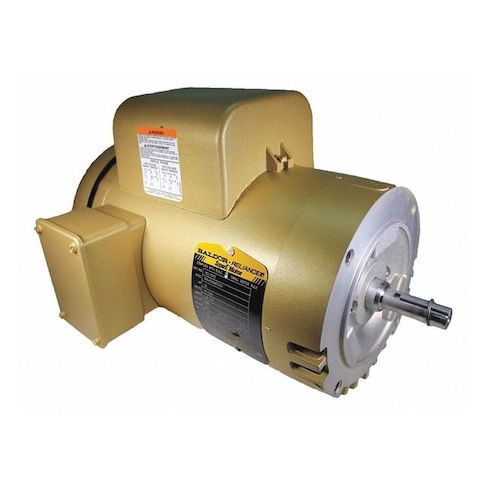

This 1.5 horsepower Capacitor-Start General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, it features a 56C frame and a single-phase design, making it ideal for applications such as pumps, fans, and conveyor systems. With a continuous duty cycle and a service factor of 1.15, this motor can handle demanding tasks with ease. Its compact design and open drip-proof enclosure make it a great choice for space-constrained installations, providing a reliable and cost-effective solution for many industrial and commercial applications.
Top product features:
- Capacitor-start design for improved starting torque
- Single-phase motor design for efficient operation
- Open drip-proof enclosure for protection against dust and water
Top product applications:
- Pumps and water treatment systems
- Fans and blowers
- Conveyors and material handling equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 11.8/5.9 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 13.60
- Package Height: 12.80
- Package Weight: 52.20
Product info last updated on February 2, 2026 5:32pm UTC
Category: Motors
