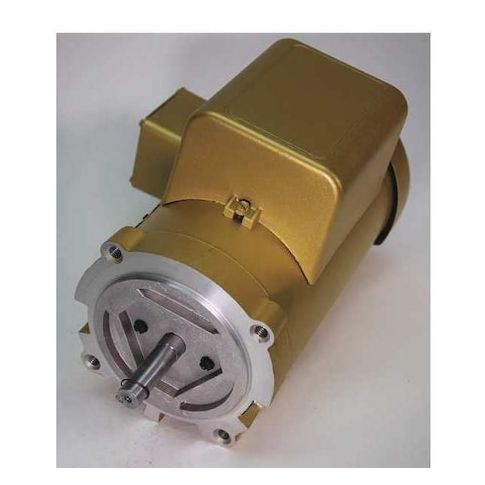

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame MPN:VEL11305
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/230V AC Voltage, 56C Frame
This 1/2 hp Capacitor-Start General Purpose Motor from BALDOR-RELIANCE is a reliable and efficient solution for a variety of applications. Suitable for use in single-phase systems, it operates at 1,140 RPM and can handle continuous duty cycles. With a 1.25 service factor, it can withstand heavy loads and maintain performance. The motor's open drip-proof enclosure design provides protection against dust and water, making it ideal for use in industrial environments. Its compact size and lightweight design make it easy to install and maintain, while its 40°C maximum ambient temperature ensures reliable operation in a range of temperatures.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Single-phase operation for simple installation and control
- Open drip-proof design for reduced maintenance and increased safety
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 4.4/2.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 10.00
- Package Height: 9.00
- Package Weight: 40.00
Product info last updated on February 4, 2026 6:04pm UTC
Category: Motors
