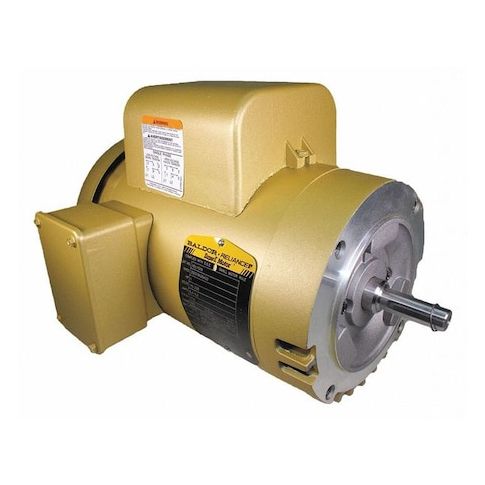

Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56C Frame MPN:VEL11317
Capacitor-Start General Purpose Motor, 2 hp HP, 115/230V AC Voltage, 56C Frame
This 2 hp Capacitor-Start General Purpose Motor from BALDOR-RELIANCE is designed for a wide range of applications, including industrial and commercial use. Suitable for use in environments with temperatures up to 40°C, this motor provides reliable and efficient operation. With a continuous duty cycle and a service factor of 1.15, it can handle demanding tasks with ease. The 56C frame and open drip-proof enclosure ensure durability and protection from the elements. Ideal for use in factories, warehouses, and other industrial settings, this motor offers a reliable and cost-effective solution for a variety of applications.
Top product features:
- Capacitor-start design for improved starting torque
- Single-phase operation for use in various applications
- NEMA Design L for high efficiency and reliability
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 2 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 15.6/7.8 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.70
- Package Width: 18.60
- Package Height: 12.60
- Package Weight: 43.00
Product info last updated on March 25, 2026 10:25am UTC
Category: Motors
