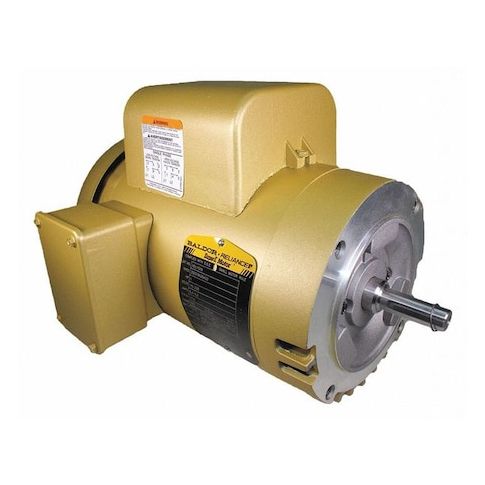

Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56C Frame MPN:VEL11318
Capacitor-Start General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56C Frame
This BALDOR-RELIANCE Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for continuous duty cycles, it can be used in various industries such as manufacturing, HVAC, and water treatment. With a 1 hp rating and 1,725 RPM, it provides a high level of performance and versatility. The motor's open drip-proof enclosure and Class F insulation ensure durability and safety. Its compact design and ease of installation make it an ideal choice for new projects or replacements. Its wide voltage range and high service factor also make it a cost-effective option.
Top product features:
- Capacitor-start design provides efficient starting and running capabilities.
- Single-phase motor operation allows for use in a variety of applications.
- Open drip-proof enclosure design protects against external contaminants and provides a safe operating environment.
Top product applications:
- Pump applications
- Conveyor systems
- Air compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.4/4.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 13.60
- Package Height: 13.00
- Package Weight: 47.80
Product info last updated on February 6, 2026 7:19pm UTC
Category: Motors
