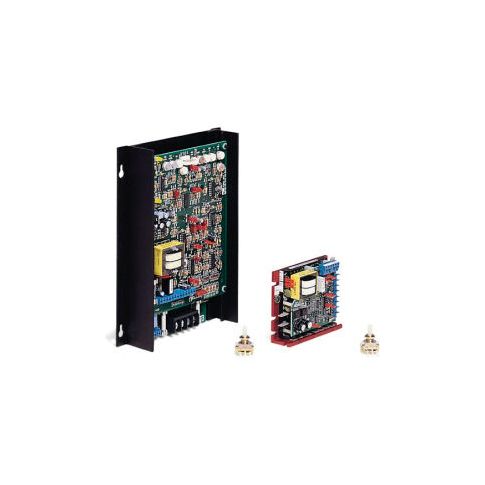

Baldor-Reliance Washdown Duty Line Regen Speed Control BC254-FBR NEMA 4X 1/8-2 HP Range
This regen speed control is designed for use in demanding washdown duty applications, such as conveyors, mixers, and packaging machinery, where constant torque and variable speed are required. The regen control allows for easy operation in forward and reverse directions without motor lead reversal, while the field power supply supports both shunt wound and permanent magnet motors. With features like adjustable acceleration and deceleration, current limit, and noise rejection, this control provides reliable and efficient operation in harsh environments. Its compact design and NEMA 4X rating make it an ideal solution for applications where durability and flexibility are crucial.
Top product features:
- Regen controls allow for easy operation of the motor in forward and reverse directions without motor lead reversal.
- A separate set of SCRs is used for each direction, enabling independent control.
- The motor's regenerated voltage is sent back to the AC line to control stopping.
Top product applications:
- Conveyors
- Mixers
- Packaging machinery
Regen controls are designed to easily operate the motor in forward and reverse directions without motor lead reversal. A separate set of scrs is used for each direction. With a regen control stopping is controlled by using the motor's regenerated voltage sent back to the ac line. Features ul stylemargin-top0px;padding-top 5px padding-bottom 5px; field power supply allows use with shunt wound dc motors as well as permanent magnet motors adjustable accel decel current limit ir comp min and max speed current limit indicating led 5k speed pot for speed control anti-demag circuit protects pm motors and helps protect the scr power bridge against direct shorts noise rejection circuit eliminates false starts and blown scr's ul and cul recognized application(s) ul stylemargin-top0px;padding-top 5px padding-bottom 5px; conveyors mixers packaging machinery and other applications requiring variable speed and constant torque.
Additional Information
- UPC: 781568482674
- UNSPSC: 39122002
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 14.00
- Package Width: 9.00
- Package Height: 4.00
- Package Weight: 5.00
Product info last updated on May 19, 2025 3:04am UTC
Category: Motor Controls
