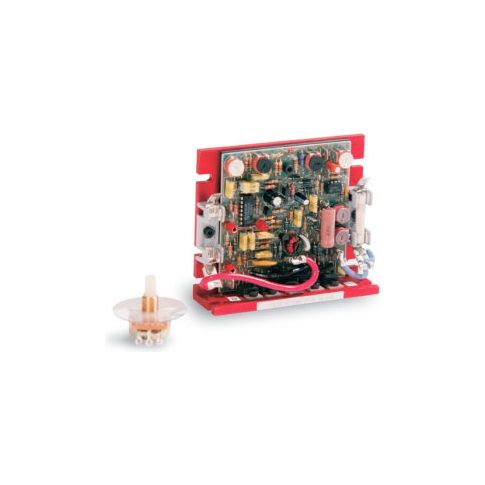

Baldor-Reliance BC142-6 DC Drive 0.75 HP/1.5 HP 0-90/0-180VDC Chassis Mount BC142-6
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-4069B44
Baldor-Reliance BC142-6 DC Drive 0.75 HP/1.5 HP 0-90/0-180VDC Chassis Mount
The Baldor-Reliance BC142-6 DC Drive is a versatile and reliable control solution for a wide range of applications. Suitable for use with 0.75 HP or 1.5 HP motors, this chassis mount SCR control features adjustable acceleration, deceleration, and current limit settings to match specific application requirements. The anti-demag feature protects permanent magnet motors and safeguards the SCR power bridge against direct shorts. Ideal for use in industrial settings, the BC142-6 can be used in applications such as material handling, conveyor systems, and robotics, and can be upgraded with an optional heatsink kit for increased power handling capabilities.
Top product features:
- Chassis mount scr controls have a free-wheeling diode and feature adjustable accel decal current limit ir comp min and max speed pots to match applications.
- The anti-demag features protects pm motors and helps protect the scr power bridge against direct shorts.
- The optional heatsink kit (BC14 is available to increase the drives capabilities to handle a higher output power rating.
Top product applications:
- Material Handling
- Machine Tool Automation
- Robotics
Chassis mount scr controls have a free-wheeling diode and feature adjustable accel decal current limit ir comp min and max speed pots to match applications. The anti-demag features protects pm motors and helps protect the scr power bridge against direct shorts. The controls have ul and cul component recognition. Product overview ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" chassis scr control dual voltage optional heatsink bc143 heatsink kit is available to increase the drives capabilities to handle a higher output power rating. Font color#ff0000 if the bc143 heatsink is added the unit will be able to handle up to 1.5 hp at 90 vdc or 3 hp at 180 vdc./font note a plug-in horsepower resistor® and armature fuse umust /u be ordered and installed in all versions of bc141 and bc142 controllers. Horsepower resistors should be selected based on the motor's rated current. (sold separately)
Additional Information
- UPC: 781568387535
- UNSPSC: 39122002
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 1.00
Product info last updated on August 16, 2025 7:30am UTC
Category: Motor Controls
