Baldor-Reliance Motor YPC264A .33HP 1075RPM 1PH 60HZ 48YZ 1714C TEAO F YPC264A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-1933B39

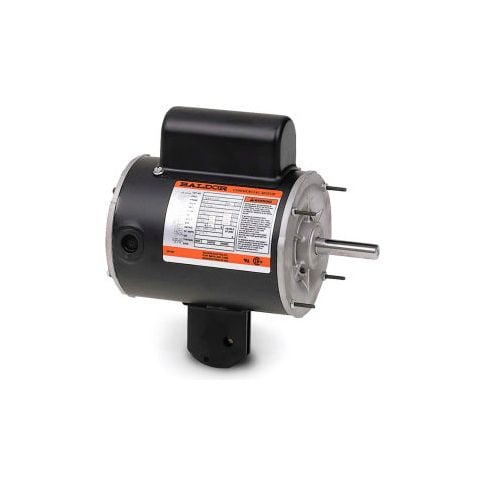

Baldor-Reliance Motor YPC264A .33HP 1075RPM 1PH 60HZ 48YZ 1714C TEAO F
This Baldor-Reliance motor is designed for air circulation and features a 1.0 service factor, 40°C ambient temperature rating, and automatic thermal overload protection. The motor's ball bearing design and class B insulation ensure smooth operation and durability. The extended thru-bolts on a 5.13-inch bolt circle facilitate mounting a fan shroud, while the heavy-gauge steel yoke provides a wide angle of rotation. Suitable for applications such as air conditioning, ventilation, and exhaust systems, this motor offers reliable performance and easy installation. Its compact design and reversible rotation shaft make it an ideal choice for a variety of industrial and commercial applications.
Top product features:
- Automatic thermal overload protection for motor safety
- Reversible rotation shaft for flexible operation
- Permanent split capacitor design for efficient operation
Top product applications:
- Designed for air circulation
- Reversible rotation shaft
- Heavy gage steel yoke with 180° slot for wide angle rotation
Baldor-reliance motor .33hp1075rpm1ph60hz48yz1714cteaof featuresul stylemargin-top0px;padding-top5px; padding-bottom5px; 1.0 service factor 40°c ambient automatic thermal overload ball bearing class b insulation extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud heavy gage steel yoke with 180° slot for wide angle rotation permanent split capacitor pull chain switch (2spd only) for high and low speed reversible rotation shaft slinger terminal panel with quick connections typical applications designed for air circulation
Additional Information
- UPC: 781568407677
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 19.00
Product info last updated on May 19, 2025 2:54am UTC
Category: Definite Purpose Electric Motors
