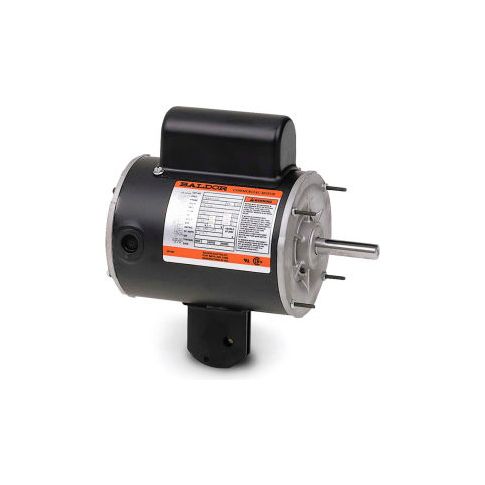

Baldor-Reliance Motor YPC244A .33HP 1625RPM 1PH 60HZ 48YZ 1710C TEAO F YPC244A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-1931B39
Baldor-Reliance Motor YPC244A .33HP 1625RPM 1PH 60HZ 48YZ 1710C TEAO F
This Baldor-Reliance Motor is designed for air circulation and features a permanent split capacitor for efficient operation. It boasts a heavy-gauge steel yoke with a 180° slot for wide-angle rotation and a ball bearing for smooth performance. The motor also includes an automatic thermal overload and extended thru-bolts for secure mounting. With a 1.0 service factor and 40°C ambient temperature rating, this motor is ideal for use in applications such as fans, blowers, and ventilation systems, offering reliable and efficient operation in a compact and durable package.
Top product features:
- 1.0 service factor
- Automatic thermal overload protection
- Heavy gage steel yoke with 180° slot for wide angle rotation
Top product applications:
- Designed for air circulation
- Designed for use in applications where a low speed is required
- Designed for use in applications where high airflow is required
Baldor-reliance motor .33hp1625rpm1ph60hz48yz1710cteaof featuresul stylemargin-top0px;padding-top5px; padding-bottom5px; 1.0 service factor 40°c ambient automatic thermal overload ball bearing class b insulation extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud heavy gage steel yoke with 180° slot for wide angle rotation permanent split capacitor pull chain switch (2spd only) for high and low speed reversible rotation shaft slinger terminal panel with quick connections typical applications designed for air circulation
Additional Information
- UPC: 781568407653
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 21.00
Product info last updated on May 19, 2025 2:54am UTC
Category: Definite Purpose Electric Motors
