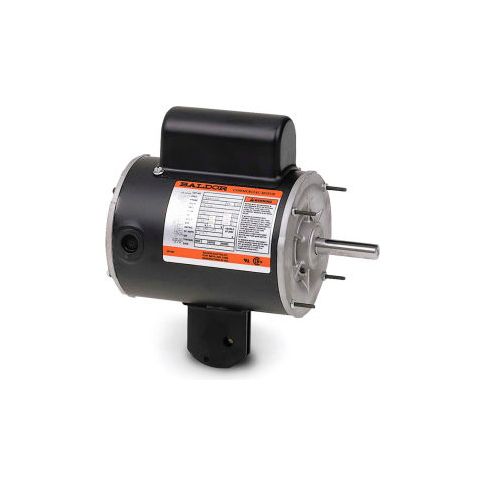

Baldor-Reliance Motor YPC144A .25HP 1625RPM 1PH 60HZ 48YZ 1708C TEAO F YPC144A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-1912B39
Baldor-Reliance Motor YPC144A .25HP 1625RPM 1PH 60HZ 48YZ 1708C TEAO F
This Baldor-Reliance motor is designed for high-performance air circulation, featuring a 1.0 service factor and 40°C ambient temperature rating for reliable operation. The motor boasts a permanent split capacitor design, allowing for reversible rotation and easy switching between high and low speeds. With its heavy-gauge steel yoke and extended thru-bolts, it provides a sturdy mounting system for fan shrouds. Ideal for applications such as ventilation systems, air handlers, and other industrial air circulation needs, this motor offers efficient and quiet operation, making it a reliable choice for demanding environments.
Top product features:
- Automatic thermal overload protection
- Ball bearing design for smooth operation
- Permanent split capacitor for reversible rotation
Top product applications:
- Designed for air circulation
- Heavy gage steel yoke with 180° slot for wide angle rotation
- Reversible rotation shaft slinger
Baldor-reliance motor .25hp1625rpm1ph60hz48yz1708cteaof featuresul stylemargin-top0px;padding-top5px; padding-bottom5px; 1.0 service factor 40°c ambient automatic thermal overload ball bearing class b insulation extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud heavy gage steel yoke with 180° slot for wide angle rotation permanent split capacitor pull chain switch (2spd only) for high and low speed reversible rotation shaft slinger terminal panel with quick connections typical applications designed for air circulation
Additional Information
- UPC: 781568407639
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 15.00
Product info last updated on May 19, 2025 2:54am UTC
Category: Definite Purpose Electric Motors
