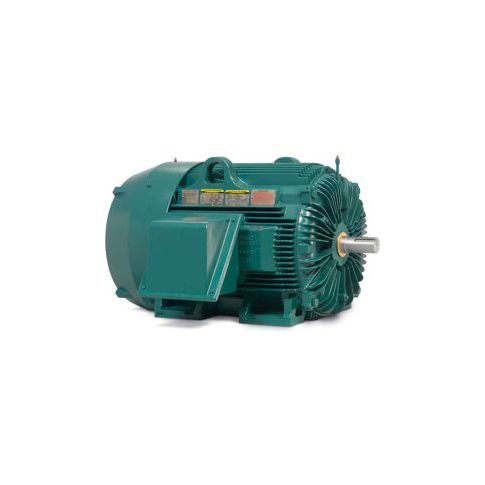

Baldor-Reliance Severe Duty Motor ECP844156TR-5 3 PH 150 HP 575 V 1190 RPM TEFC 447T Frame ECP844156TR-5

Severe duty motors are available from 1 hp to 700 hp. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants mines foundries pulp and paper plants waste management facilities rock crushers and chemical plants. Features ul stylemargin-top0px;padding-top 5px padding-bottom 5px; built to 841xl design upgraded electrical and mechanical design with nema premium® efficient winding inpro/seal® vbx (thru 210 frame) vbxx bearing isolators on fan and drive end shaft extensions epoxy paint provides ip56 enclosure stainless breather drains proprietary cast iron frames for reduced vibration and noise terminal lugs on motor leads 5-year warranty application(s) ul stylemargin-top0px;padding-top 5px padding-bottom 5px; petro-chemical pulp and paper cement aggregate mining and other process industries requiring premium efficient motors designed manufactured and tested to exceed ieee 841-2001 tefc motor standards for extreme severe duty service.
