Baldor-Reliance General Purpose Motor 230/460 V 25 HP 3520 RPM 3 PH 256T TEFC EM4118T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-9147B90

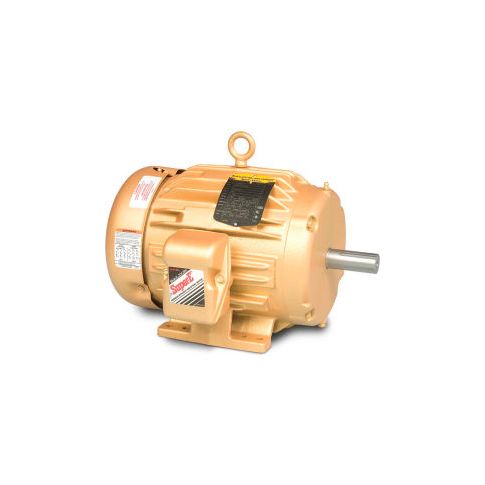

Baldor-Reliance General Purpose Motor 230/460 V 25 HP 3520 RPM 3 PH 256T TEFC
This Baldor-Reliance General Purpose Motor is designed for a wide range of applications, including compressors, pumps, fans, conveyors, and material handling equipment. Its heavy-duty construction and ball bearings ensure reliable operation, while its Isr copper windings and low-loss electrical grade lamination steel provide energy efficiency and durability. Suitable for variable torque applications and constant torque speed range with variable frequency drives, this motor is ideal for operations requiring continuous or frequent duty. With a three-year warranty and inverter-rated design, it offers peace of mind and long-term value. Its heavy gauge steel and cast iron frame provide a robust foundation for demanding industrial use.
Top product features:
- Heavy gauge steel and cast iron frames provide a durable and long-lasting structure for the motor.
- Ball bearings ensure smooth and quiet operation, reducing wear and tear on the motor.
- Isr (inverter spike resistant) copper windings protect the motor from damage caused by voltage spikes and electrical surges, extending its lifespan and reliability.
Top product applications:
- Compressors
- Pumps
- Fans
Baldor's extensive line of general purpose motors are available in open drip-proof and tefc construction in both single and three phase. Horsepower sizes available from stock range from 1/12 hp through 1500 hp. Designed for general purpose use means that these motors can be used in applications which include compressors pumps fans conveyors material handling machine tools and many others. Heavy gauge steel and cast iron frames. Ball bearings. Isr® (inverter spike resistant®) copper windings. Low-loss electrical grade lamination steel. Three year warranty. Typical applications include operations where continuous or frequent duty is required. Super-e motors are designed to conserve energy over extended time periods. Class f insulated 1.15 service factor. Inverter rated per nema mg1 part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Additional Information
- UPC: 781568548073
- UNSPSC: 26101112
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 27.00
- Package Width: 21.00
- Package Height: 19.00
- Package Weight: 299.00
Product info last updated on February 5, 2026 1:24am UTC
Category: General Purpose Electric Motors
