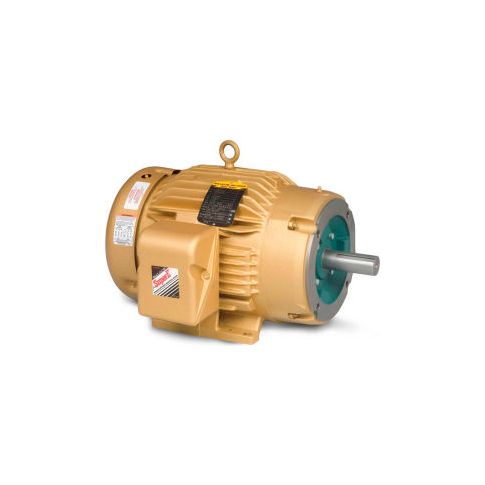

Baldor-Reliance Motor CEM3770T 7.5HP 1770RPM 3PH 60HZ 213TC 0735M TEFC CEM3770T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8822B38
Baldor-Reliance Motor CEM3770T 7.5HP 1770RPM 3PH 60HZ 213TC 0735M TEFC
This Baldor-Reliance Motor is a high-performance solution for demanding applications. With a 7.5HP rating and 1770RPM speed, it's designed for continuous or frequent duty operations where energy conservation is crucial. Built with heavy gauge steel and cast iron frames, ball bearings, and inverter spike resistant windings, this motor is perfect for variable torque applications and constant torque speed ranges. Its low-loss electrical grade lamination steel and Class F insulation ensure efficient operation and long lifespan. Suitable for use with variable frequency drives, this motor is ideal for industrial settings where reliability and energy efficiency are top priorities.
Top product features:
- Heavy gauge steel and cast iron frames.
- Ball bearings.
- Isr copper windings.
Top product applications:
- Continuous or frequent duty operations
- Variable torque applications
- Constant torque speed range with properly sized and adjusted variable frequency drives
Heavy gauge steel and cast iron frames. Ball bearings. Isr® (inverter spike resistant®) copper windings. Low-loss electrical grade lamination steel. Three year warranty. Typical applications typical applications include operations where continuous or frequent duty is required. Super-e motors are designed to conserve energy over extended time periods. Class f insulated 1.15 service factor. Inverter rated per nema mg1 part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Additional Information
- UPC: 781568134368
- UNSPSC: 26101112
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 170.00
Product info last updated on February 8, 2026 3:48am UTC
Category: General Purpose Electric Motors
