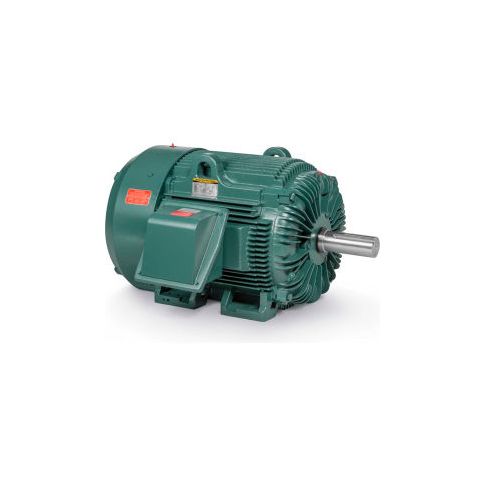

Baldor-Reliance Motor ECP44206TR-4 200HP 1190RPM 3PH 60HZ 449T TEFC FOOT ECP44206TR-4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-7760B38
Baldor-Reliance Motor ECP44206TR-4 200HP 1190RPM 3PH 60HZ 449T TEFC FOOT
The Baldor-Reliance Motor ECP44206TR-4 is a high-performance, heavy-duty motor designed for continuous or frequent duty applications. Built with a heavy gauge steel and cast iron frame, roller bearings, and copper windings, this motor is suitable for variable torque applications and provides a 201 constant torque speed range with properly sized and adjusted variable frequency drives. With a 3-year warranty and Inverter Spike Resistant (ISR) technology, this motor is perfect for operations requiring energy conservation over extended time periods, such as in manufacturing, material handling, and other industries with high-speed machinery.
Top product features:
- Heavy gauge steel and cast iron frames
- Roller bearings for heavy belted loads
- Inverter spike resistant copper windings
Top product applications:
- Operations where continuous or frequent duty is required
- Super-e motors are designed to conserve energy over extended time periods
- Suitable for variable torque applications and 201 constant torque speed range with properly sized and adjusted variable frequency drives
Baldor-reliance motor 200hp1190rpm3ph60hz449ttefcfoot featuresul stylemargin-top0px;padding-top5px; padding-bottom5px; heavy gauge steel and cast iron frames roller bearings for heavy belted loads (not suitable for coupled loads) isr® (inverter spike resistant®) copper windings low-loss electrical grade lamination steel three year warranty typical applications typical applications include operations where continuous or frequent duty is required. Super-e motors are designed to conserve energy over extended time periods. Class f insulated 1.15 service factor. Inverter rated per nema mg1 part 31.4.4.2. Suitable for variable torque applications and 201 constant torque speed range with properly sized and adjusted variable frequency drives.
Additional Information
- UPC: 781568214909
- UNSPSC: 26101100
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 2848.00
Product info last updated on February 7, 2026 1:06pm UTC
Category: Definite Purpose Electric Motors
