Baldor-Reliance Motor EM3661T-8 3HP 1760RPM 3PH 60HZ 182T 0628M TEFC F1 EM3661T-8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-0020B39

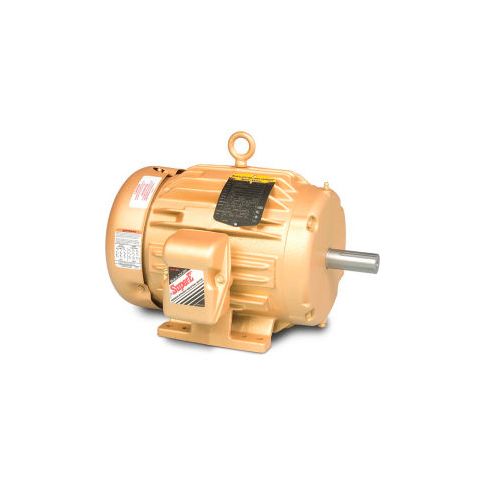

Baldor-Reliance Motor EM3661T-8 3HP 1760RPM 3PH 60HZ 182T 0628M TEFC F1
The Baldor-Reliance Motor EM3661T-8 is a high-performance motor designed for heavy-duty applications. Constructed with heavy gauge steel and cast iron frames, it features ball bearings and Isr copper windings for reliable operation. Suitable for continuous or frequent duty, it conserves energy over extended time periods, making it ideal for variable torque applications and constant torque speed ranges with variable frequency drives. Its Class F insulated design and 3-year warranty provide peace of mind, while its inverter-rated design ensures compatibility with modern control systems. Perfect for industries requiring efficient and reliable power, this motor meets the demands of heavy-duty operations.
Top product features:
- Heavy gauge steel and cast iron frames
- Ball bearings
- Isr (inverter spike resistant) copper windings
Top product applications:
- operations where continuous or frequent duty is required
- variable torque applications
- constant torque speed range with properly sized and adjusted variable frequency drives
Heavy gauge steel and cast iron frames. Ball bearings. Isr® (inverter spike resistant®) copper windings. Low-loss electrical grade lamination steel. Three year warranty. Typical applications typical applications include operations where continuous or frequent duty is required. Super-e motors are designed to conserve energy over extended time periods. Class f insulated 1.15 service factor. Inverter rated per nema mg1 part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Additional Information
- UPC: 781568118085
- UNSPSC: 26101112
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: TRUCK
- Freight Class: 70
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 91.00
Product info last updated on March 15, 2026 3:22pm UTC
Category: General Purpose Electric Motors
