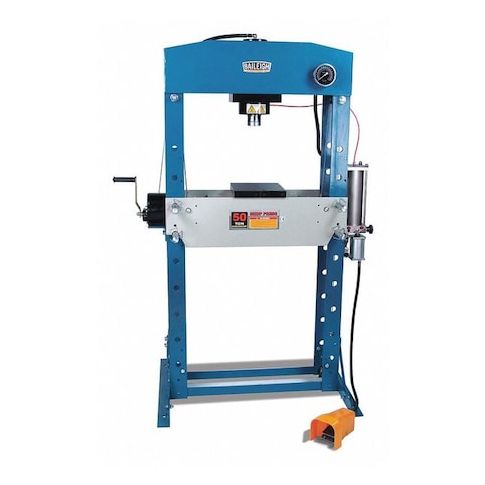

50-Ton Press, Pneumatic, H-Frame (HSP-50A) MPN:HSP-50A
Free Shipping
In Stock
The Baileigh Industrial HSP-50A 50-Ton Press is a versatile, air-powered machine designed for industrial bending, straightening, forming, and assembly work. This heavy-duty press combines speed and precision, delivering 50 tons of force at 123 psi. The two-speed operation features a manual side pump for delicate projects and a hands-free foot pedal for faster work. The movable ram and repositionable table accommodate various part sizes and setups. Ideal for metal fabrication shops, machine shops, and manufacturing facilities, this press is perfect for tasks such as forming brackets, bending pipes, and assembling parts. Increase productivity and efficiency with the HSP-50A.
Top product features:
- Delivers 50 tons of force at an operating pressure of 123 psi.
- Features a large 6-inch diameter cylinder with a 7.8-inch stroke and automatic cylinder return.
- Offers a repositionable table that adjusts to handle various part sizes, providing a working height ranging from 2.5 inches to 44 inches.
Top product applications:
- Industrial bending
- Straightening
- Forming and assembly work
The Baileigh Industrial HSP-50A is a 50-ton H-frame shop press designed for industrial bending, straightening, forming, and assembly work. This machine combines an air-powered pneumatic system for speed with a manual hand pump for applications requiring more delicate control. The frame is fully welded steel.
Performance and Hydraulics:
- - Force Capacity: Delivers 50 tons of force at an operating pressure of 123 psi.
- - Two-Speed Operation: Utilizes an air/hydraulic system for pneumatic speed and hands-free foot pedal control, while a manual side pump provides precision for delicate projects.
- - Cylinder and Stroke: Features a large 6-inch diameter cylinder with a 7.8-inch stroke and automatic cylinder return.
- - Movable Ram: The cylinder can be moved left-to-right to accommodate off-center pressing and various setups.
Working Dimensions:
- - Working Bed: Repositionable table adjusts to handle various part sizes, offering a working height ranging from 2.5 inches to 44 inches.
- - Ram Clearance: Provides a minimum ram-to-table distance of 2.72 inches and a maximum distance of 41.26 inches.
- - Work Area: Offers a 28.5-inch working width between uprights and a press bed depth of 7.75 inches.
- - Buy the Baileigh 50-ton press (HSP-50A) from Zoro today!
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 83.00
- Package Width: 39.00
- Package Height: 15.30
- Package Weight: 800.00
