Hydraulic Press, H-Frame, Air Operated, 75 Ton, Movable Cylinder, Foot Pedal, 31-1/2 in Width MPN:HSP-75A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2222389
Hydraulic Press, H-Frame, Air Operated, 75 Ton, Movable Cylinder, Foot Pedal, 31-1/2 in Width

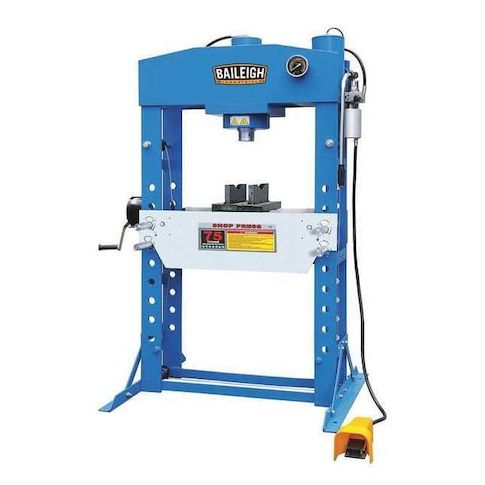

The BAILEIGH INDUSTRIAL HSP-75A is a 75-ton H-frame hydraulic press with air-actuated operation and an onboard air pump. Application listed: pressing bearings (example application). The frame and machined components are steel and the unit includes a V-block.
Key Features:
- Rated capacity: 75 ton at the specified operating pressure (123 psi)
- Operation / Pump: air-actuated operation with onboard air pump (pump model not specified in description)
- Required air pressure: 90–115 psi
- Frame: H-frame, welded steel construction
- frame rated for 75 ton
- Cylinder: movable cylinder with automatic cylinder return mechanism and foot pedal control
- Ram: 3 in ram size
- cylinder stroke ~9.75–9.8 in
- ram travel 16 in
- Ram-to-table distance (min–max): ~6.69–34.8 in (working height 2-1/2 to 34-1/2 in)
- Working width / distance between uprights: 31 1/2 in
- Press bed: width 31 1/2 in, depth 9 3/4 in, bed height 2-1/2 to 34-1/2 in
- Base dimensions: 44 in length × 44 in depth × 24 in width
- Overall dimensions: height 83 in, width 43 in
- Includes: V-block
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 82.50
- Package Width: 43.50
- Package Height: 15.90
- Package Weight: 1081.00
Product info last updated on February 3, 2026 12:48pm UTC
Category: Machining
