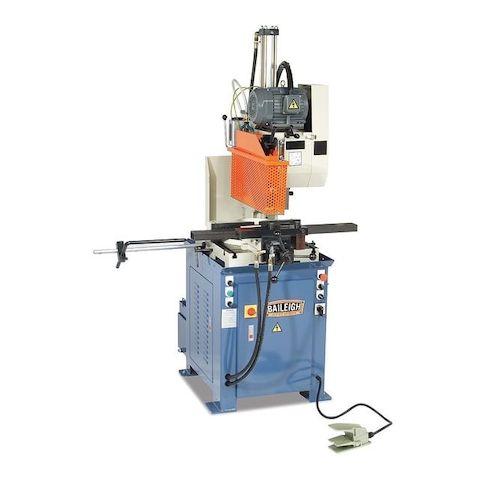

Cold Saw, CS-C425, Semi-Automatic, 17 in Blade, 220V AC, 3 HP, Three Phase MPN:CS-C425SA
Free Shipping
In Stock
The Baileigh Industrial CS-C425 Cold Saw is a versatile and powerful metal cutting tool ideal for various applications in fabrication shops, machine shops, and manufacturing facilities. Its 17-inch blade and 1-17/64-inch arbor enable efficient cutting of metal stock, while the variable speed control allows for precise control over the cutting process. The saw's compact design and durable construction make it easy to use and maintain, reducing downtime and increasing productivity. Suitable for cutting a range of metal types, including steel, aluminum, and copper, this saw is a valuable addition to any metalworking operation.
Top product features:
- Cutting Blade Diameter: 17 in
- Blade Speed: 35 RPM, 60 RPM, 70 RPM, 120 RPM
- Miter Angle Range: 45 Degrees Left to 30 Degrees Right
Top product applications:
- Metal Fabrication
- Metal Cutting
- Machining
The BAILEIGH INDUSTRIAL CS-C425SA (Series CS-C425) cold saw is a corded, three-phase metal cutting saw with a 3 HP motor and a 14 in blade (blade diameter listed as 14 in
- manufacturer also lists 17 in (432 mm) — verify exact blade diameter with manufacturer/spec sheet). It is configured for production use, features a round arbor (1 1/4 in) and uses cold saw blades with 32 mm blade-mounting holes. Electrical rating: 220 V AC, 27 A
- rated no-load blade speeds: 35, 60, 70, 120 RPM.
Key Features:
- Item/Type: Cold Saw (Metal Saw Type: Cold Saw), Series CS-C425
- Application: Production (as listed by manufacturer)
- Blade: Blade diameter listed as 14 in
- manufacturer also lists 17 in (432 mm) — verify exact blade diameter with manufacturer/spec sheet
- Cutting Blade Type: Cold Saw Blade
- Blade Mounting Holes: 32 mm
- Arbor: Arbor Shape: Round
- Arbor Size: 1 1/4 in
- Motor/Power: Horsepower: 3 HP
- Electrical rating: 220 V AC
- Phase: Three
- Current: 27 A
- Power Source/Corded: Corded
- Speeds: Rated no-load blade speeds: 35, 60, 70, 120 RPM
- Cutting capacity: Round Cut Capacity @ 0°: 4 15/16 in
- @ 45°: 4 1/2 in
- Cutting capacity (square): Square Cut Capacity @ 0°: 4-3/8 in
- @ 45°: 3-15/16 in
- Miter/Feed: Miter Angle Range: 45° Left to 30° Right
- Material Feed: Semi-Automatic
- Guard: Guard Type: Steel
- Physical: Tool Weight: 1,870 lb
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 58.00
- Package Width: 33.00
- Package Height: 84.00
- Package Weight: 1870.00
