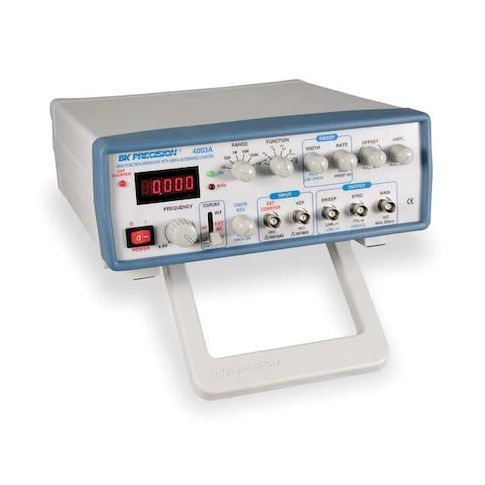

Generator, Function MPN:4003A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8533813
Generator, Function
This sweep function generator produces high-quality sine, square, and triangle waves with excellent distortion and rise/fall times. With a frequency range of 0.5 Hz to 4 MHz and an output amplitude of 0.1 Vpp to 10 Vpp, it's ideal for a wide range of applications including electronics testing, signal generation, and research. The built-in sweep function allows for linear or logarithmic sweeps with a 100:1 range and a rate of 10 msec to 5 sec, making it perfect for characterizing circuits and systems. Its compact size and high performance make it a valuable tool for professionals and hobbyists alike.
Top product features:
- Generates a sine wave with a frequency range of 0.5 Hz to 4 MHz
- Generates a square wave with a frequency range of 0.5 Hz to 4 MHz
- Provides a sine wave with distortion of less than 1 percent from 1 Hz to 100 KHz
Top product applications:
- Audio testing and calibration
- Medical device testing and calibration
- Scientific research and development
Sweep Function Generator, -, Sine Wave Range 0.5 Hz to 4 MHz, Square Wave Range 0.5 Hz to 4 MHz, Other Waveform Range Triangle 0.5 Hz to 4, Sine Wave Distortion Less Than 1 Percent from 1 Hz to 100 KHz, Sq. Wave Rise/Fall Time (nS) Less Than 60, Output Amplitude 0.1 Vpp - 10 Vpp (50 ohm Load), 0.2 Vpp - 20 Vpp (No Load), Impedance (Ohms) 50 ohm, Output Attenuation -20 db (+/-2 Percent), Yes Sweep, Internal Linear or Logarithmic Sweep Type, Sweep Range 100:1, Sweep Rate 10 msec to 5 sec
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 12.10
- Package Height: 6.20
- Package Weight: 7.05
Product info last updated on February 17, 2026 6:13am UTC
Category: Electronic and Bench Testing
