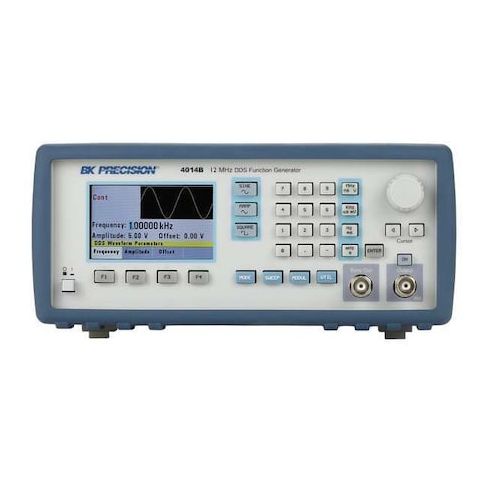

Function Generator, 12MHz, AM/FM MPN:4014B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8092131
Function Generator, 12MHz, AM/FM
This versatile function generator is a powerful tool for a wide range of applications, including research, development, and educational settings. With a frequency range of 0.01 Hz to 12 MHz, it can produce sine, square, and triangle waves with high accuracy and low distortion. The generator's ability to output a range of amplitudes and waveforms makes it suitable for testing and characterizing electronic devices, as well as simulating real-world signals. Its compact size and user-friendly interface make it an ideal addition to any laboratory or workshop, allowing users to quickly and easily generate the signals they need to get the job done.
Top product features:
- Generates sine waves with distortion of less than -60 dBc up to 1 MHz
- Produces square waves with a rise/fall time of less than 20 nS
- Outputs a signal amplitude of 10 mVpp to 10 Vpp into a 50 ohm load
Top product applications:
- Laboratory testing and research
- Medical device calibration and testing
- Audio equipment design and development
Signal Generator, DDS Function, Sine Wave Range 0.01 Hz to 12 MHz, Square Wave Range 0.01 Hz to 12 MHz, Other Waveform Range Triangle 0.1 to 12 MHz, Sine Wave Distortion DC - 1 MHz, Less Than -60 dBc,1 MHz - 5 MHz, Less Than -50 dBc,5 MHz - 12 MHz, Less Than -45 dBc, Sq. Wave Rise/Fall Time (nS) Less Than 20, Output Amplitude 10 mVpp to 10 Vpp (into 50 ohm), 20 mVpp to 20 Vpp (Open Circuit), Impedance (Ohms) 50 ohm, Output Attenuation +/-0.5 dB to 1 MHz, +/-1 dB to 12 MHz
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 6.00
- Package Height: 12.00
- Package Weight: 5.00
Product info last updated on March 14, 2026 10:55pm UTC
Category: Electronic and Bench Testing
