Handheld Oscilloscope, 100 MHz MHz, 2 Channels, 5.6 in Color TFT-LCD MPN:2511B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G710111949

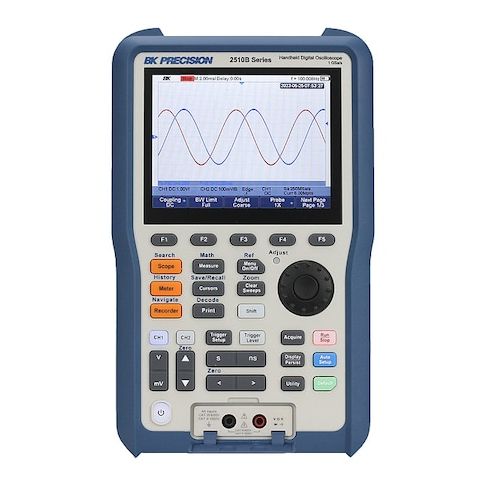

Handheld Oscilloscope, 100 MHz MHz, 2 Channels, 5.6 in Color TFT-LCD
The B and K Handheld Oscilloscope is a versatile and powerful tool for engineers, technicians, and researchers. With a 100 MHz bandwidth and 2 channels, it provides accurate and detailed measurements of electrical signals in real-time. The 5.6 inch color TFT-LCD display and true RMS capability make it easy to analyze and understand complex waveforms. Suitable for a wide range of applications including electronics development, automotive, aerospace, and medical device testing, this oscilloscope offers FFT analysis, cursor and zoom functions, and capacitance measurements. Its compact design and USB connectivity make it an ideal choice for field testing and lab use.
Top product features:
- 100 MHz bandwidth for accurate signal analysis
- 2 channels for simultaneous measurement and comparison of multiple signals
- 1 GSa/s sampling rate in interleaving mode for detailed waveform capture
Top product applications:
- Field Service and Repair
- Education and Training
- Research and Development
Handheld Oscilloscope, Bandwidth (MHz) 100 MHz, 2 Channels, 5.6 in Color TFT-LCD Display, True RMS Yes, Sampling Rate 1 GSa/s (Interleaving Mode), 500 MSa/s (Non-Interleaving Mode), USB Host Port Waveform / Measurement Stored, FFT Analysis Yes, Cursors and Zoom Yes, Real Time Clock Yes, Auto Triggering Mode, Input Sensitivity 2 mV/div to 100 V/div, 1 sec, 10 sec, 30 sec, 5 sec, Infinite, Off Persistence, Capacitance Measurements 4.00 nF, 40.00 micron F, 40.00 nF, 400.0 micron F, 400.00 nF
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 18.00
- Package Height: 10.00
- Package Weight: 11.00
Product info last updated on February 12, 2026 11:11pm UTC
Category: Electronic and Bench Testing
