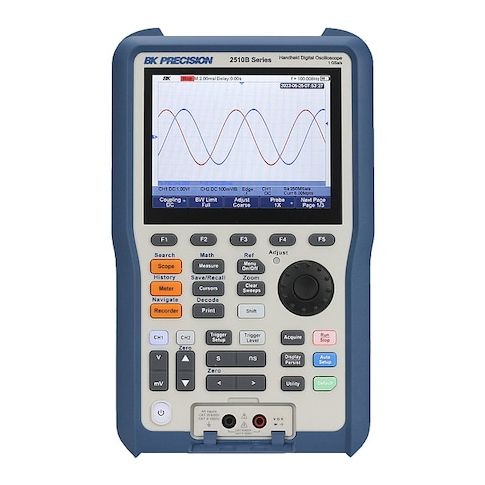

Handheld Oscilloscope, 100 MHz MHz, 2 Channels, 5.6 in Color TFT-LCD MPN:2515B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G610111933
Handheld Oscilloscope, 100 MHz MHz, 2 Channels, 5.6 in Color TFT-LCD
The B and K Handheld Oscilloscope is a powerful tool for capturing and analyzing high-speed signals in a variety of applications. With its 100 MHz bandwidth and 2-channel capability, it's ideal for use in electronics, automotive, and aerospace industries. The 5.6-inch color TFT-LCD display and true RMS measurement capabilities make it easy to visualize and measure complex waveforms. The oscilloscope also features FFT analysis, cursors and zoom, and real-time clock, making it a versatile solution for a range of tasks, from debugging and troubleshooting to research and development. Its compact design and USB connectivity make it easy to take on the go.
Top product features:
- 100 MHz bandwidth for capturing high-frequency signals
- 2 channels for simultaneous measurement of multiple signals
- True RMS measurement for accurate measurement of AC signals
Top product applications:
- Field Service and Maintenance
- Electronics Engineering and Development
- Quality Control and Assurance
Handheld Oscilloscope, Bandwidth (MHz) 100 MHz, 2 Channels, 5.6 in Color TFT-LCD Display, True RMS Yes, Sampling Rate 1 GSa/s (Interleaving Mode), 500 MSa/s (Non-Interleaving Mode), USB Host Port Waveform / Measurement Stored, FFT Analysis Yes, Cursors and Zoom Yes, Real Time Clock Yes, Auto Triggering Mode, Input Sensitivity 2 mV/div to 100 V/div, 1 sec, 10 sec, 30 sec, 5 sec, Infinite, Off Persistence, Capacitance Measurements 4.00 nF, 40.00 micron F, 40.00 nF, 400.0 micron F, 400.00 nF
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.30
- Package Width: 18.10
- Package Height: 10.43
- Package Weight: 13.00
