Rivet Nut, M4-0.70 Thread Size, 70.87 mm Flange Dia., 11.94 mm L, Steel, 25 PK MPN:AKS4T-470-3.3
Rivet Nut, M4-0.70 Thread Size, 70.87 mm Flange Dia., 11.94 mm L, Steel, 25 PK

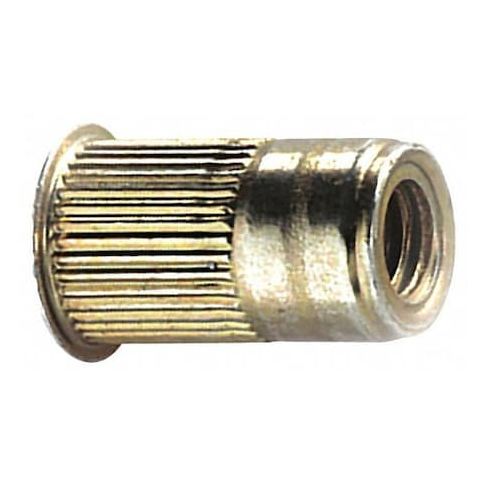

The AVK Rivet Nut is a versatile fastening solution for metal applications. Designed for use in a variety of industries, including automotive, aerospace, and construction, this M4-0.70 threaded rivet nut provides a secure and reliable way to attach metal components. Its knurled body and coarse thread ensure a strong grip, while its compact size allows for use in tight spaces. The rivet nut can be used in metal thicknesses ranging from 2-3.3mm, making it suitable for a wide range of applications, including automotive trim, aerospace fastening, and construction hardware. Its high-quality steel construction ensures durability and resistance to corrosion.
Top product features:
- Inserts into metal material with a minimum thickness of 2 mm and a maximum thickness of 3.3 mm.
- Has a thread size of M4-0.70 for secure fastening.
- Provides a knurled body texture for easy handling and installation.
Top product applications:
- Structural assembly of metal frames and components
- Automotive applications where a secure and flush fastening is required
- Machine building and equipment manufacturing where a high-strength rivet nut is needed
Rivet Nut, System of Measurement Metric, Insert Diameter 6.7 mm, Overall Length 12.4 mm, Installed Length 7.75 mm, Thread Size M4-0.70, Thread Direction Right Hand, Thread Type Coarse, Flange Diameter 7.9 mm, Flange Thickness 0.48 mm, Material Steel, Material Grade/Class 1010/1008, Body Texture Knurled, Compatible Material Metal, Drill Bit Size 6.75 mm, Maximum Hole Diameter 6.75 mm, Minimum Material Thickness 2 mm, Maximum Material Thickness 3.3 mm, Insert Nut Type Rivet Nut, Body Type Round
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.00
- Package Width: 1.80
- Package Height: 0.80
- Package Weight: 0.10
Product info last updated on February 9, 2026 11:26pm UTC
Category: Rivets
