Area Sensor, NPN, Metal, 20mm, 40 Beam MPN:BW20-40
Area Sensor, NPN, Metal, 20mm, 40 Beam

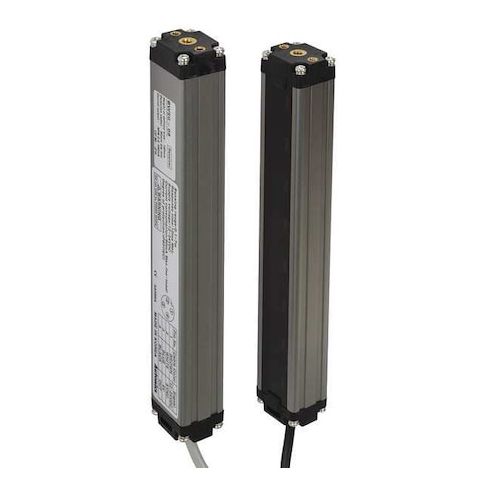

This Autonics Area Sensor is a reliable and efficient solution for detecting objects in a wide area. With its 40-beam configuration and 20mm beam spacing, it provides accurate detection of objects within a sensing range of 0.10 to 7.00m. Suitable for applications in manufacturing, logistics, and warehousing, this sensor ensures smooth and safe operation of machinery and equipment. Its NPN open collector circuit and 12-24V DC power source make it easy to integrate into various systems. Additionally, its IP65 rating and infrared LED light source make it resistant to dust and water, ensuring reliable performance in harsh environments.
Top product features:
- Sensing Range of 0.10 to 7.00m
- NPN Open Collector Circuit Type
- Infrared LED Light Source
Top product applications:
- Area sensors are often used in industrial automation to detect the presence or absence of objects in a specific area. This product can be applied in a warehouse to detect when a pallet is in place, triggering a conveyor belt to move.
- This product can be used in a production line to detect the presence of products on a conveyor belt, triggering a sorting system to sort the products.
- Area sensors like this product can be used in a parking garage to detect when a vehicle is in a parking space, triggering a payment system to collect fees.
Photoelectric Area Sensor, Housing Material Aluminum, IP Rating IP65, Beam Spacing 20 mm, Sensing Range 0.10 to 7.00m, Number of Beams 40, Sensing Height 780 mm, Circuit Type NPN Open Collector, Power Source 12 to 24V DC, Cable Connection 4 Pin M12, Cable Length 0.3 m, Light Source Infrared LED, Response Time 10 msec, Current Consumption 120 mA, Max. Load Voltage 30V DC, Max. Load Current 100 mA, Output Mode Light-On, Overall Height 800 mm, Width 28.6 mm, Depth 22.6 mm
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 44.09
- Package Width: 2.76
- Package Height: 4.72
- Package Weight: 3.09
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on January 15, 2026 8:19am UTC
Category: Industrial Electrical Controls and Automation
